Numerical simulation of storm surge inundation in block scale

Zhang Lu; Fu Cifu; Dong Jianxi; Yu Fujiang

doi:10.12284/hyxb2021161

Volume 43 Issue 10

Oct. 2021

Turn off MathJax

Article Contents

Article Navigation > Haiyang Xuebao > 2021 > 43(10): 38-49

Zhang Lu，Fu Cifu，Dong Jianxi, et al. Numerical simulation of storm surge inundation in block scale[J]. Haiyang Xuebao，2021, 43(10)：38–49 doi: 10.12284/hyxb2021161

Citation:

Zhang Lu，Fu Cifu，Dong Jianxi, et al. Numerical simulation of storm surge inundation in block scale[J]. Haiyang Xuebao，2021, 43(10)：38–49 doi: 10.12284/hyxb2021161

Citation:

Zhang Lu，Fu Cifu，Dong Jianxi, et al. Numerical simulation of storm surge inundation in block scale[J]. Haiyang Xuebao，2021, 43(10)：38–49 doi: 10.12284/hyxb2021161

PDF( 2217 KB)

Numerical simulation of storm surge inundation in block scale

doi: 10.12284/hyxb2021161

Zhang Lu^1
,,
Fu Cifu¹,
Dong Jianxi^{1, 2},
Yu Fujiang^{1, 2}

1.
National Marine Environmental Forecasting Center, Beijing 100081, China
2.
Key Laboratory of Research on Marine Hazards Forecasting, National Marine Environmental Forecasting Center, State Oceanic Administration, Beijing 100081, China

Received Date: 2020-07-29
Rev Recd Date: 2021-03-19

Available Online: 2021-09-02

Publish Date: 2021-10-30

Abstract

Abstract

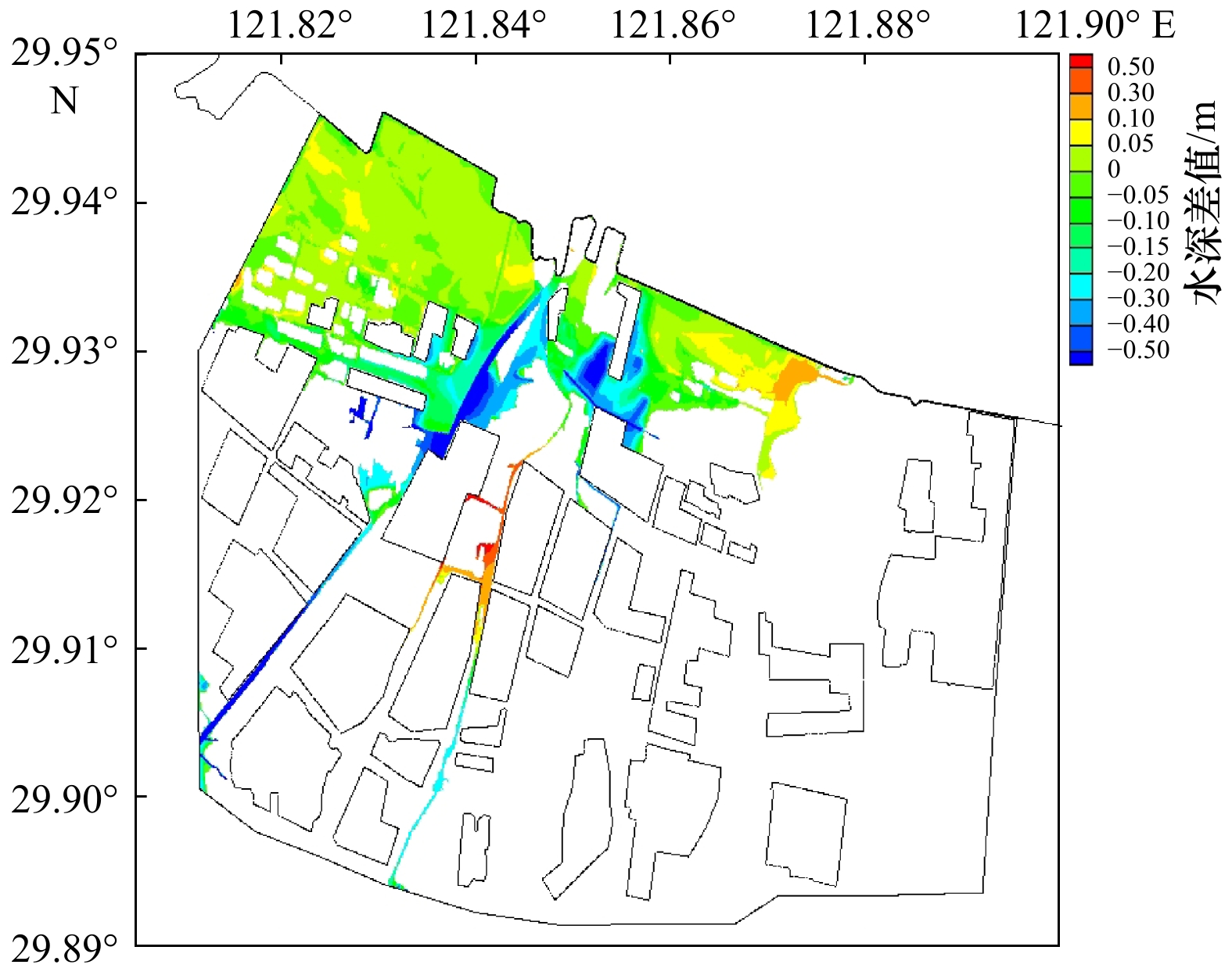

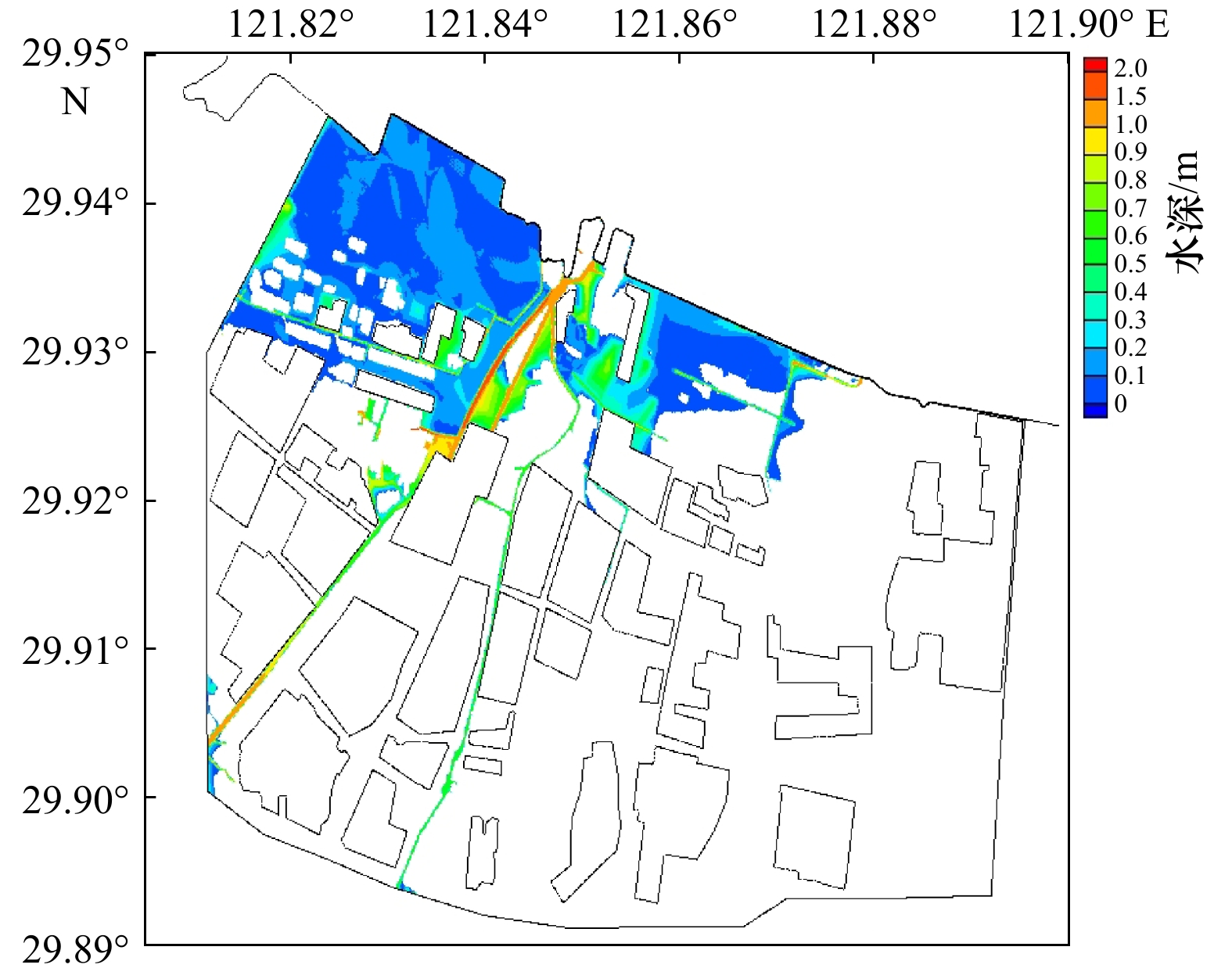

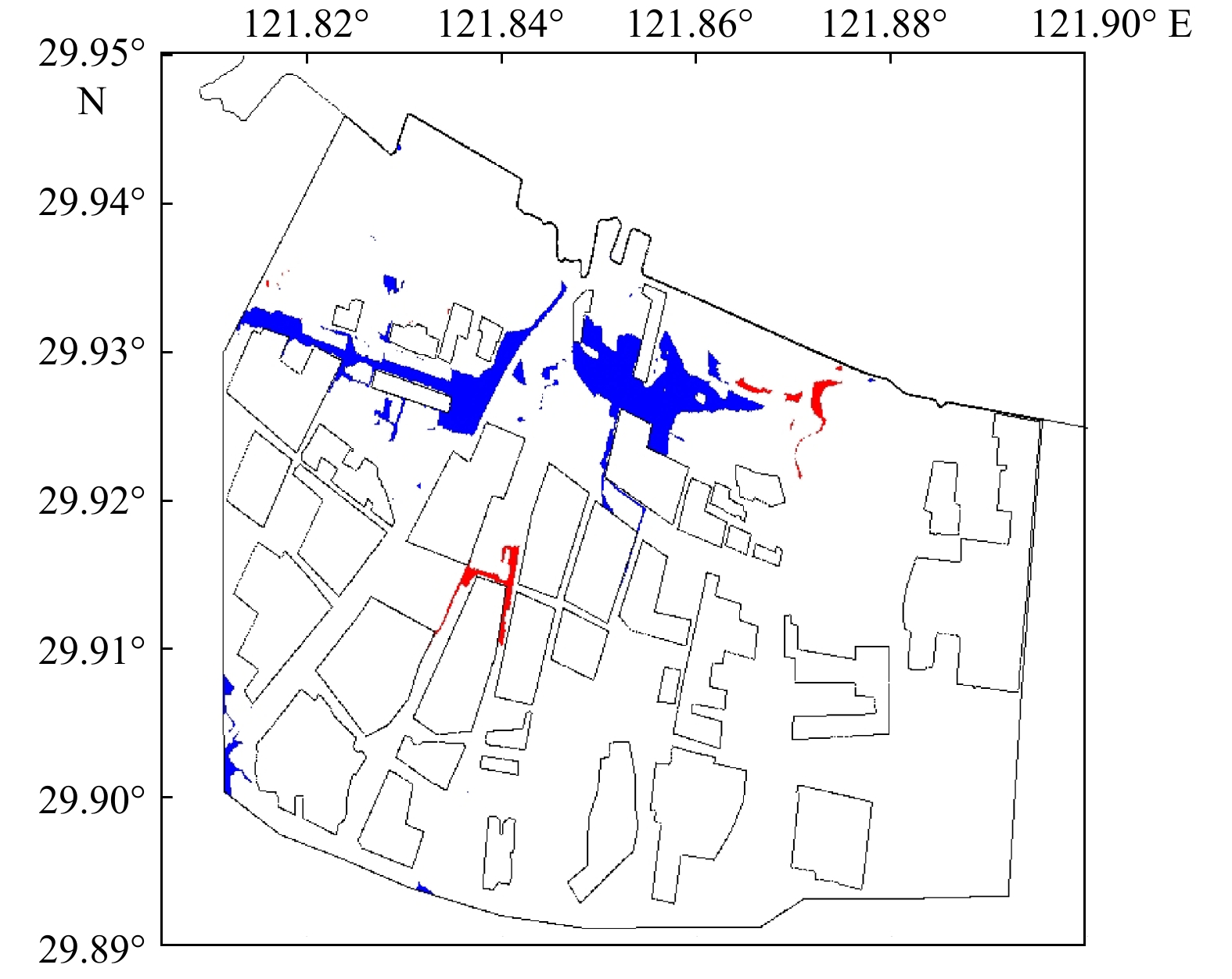

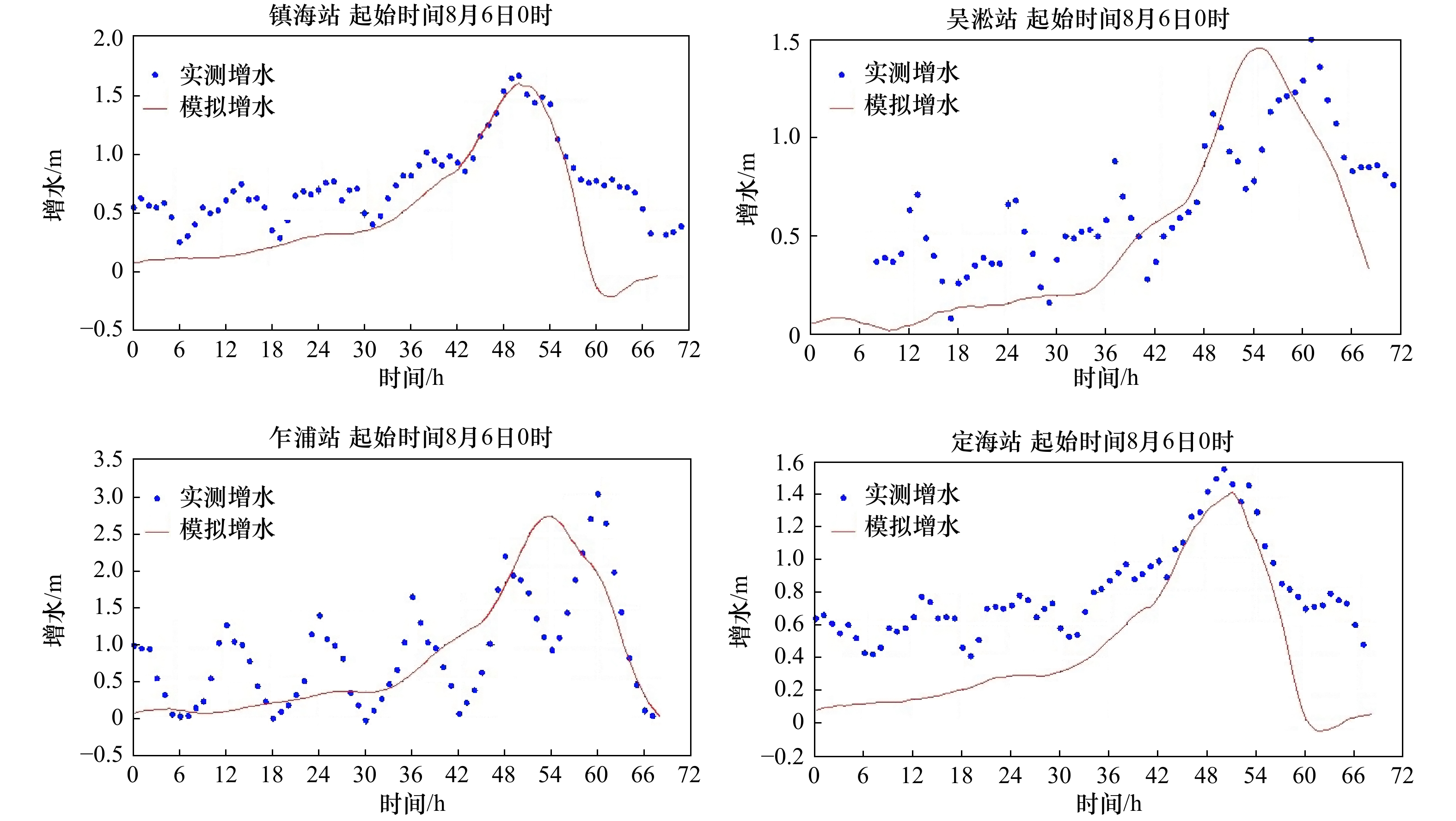

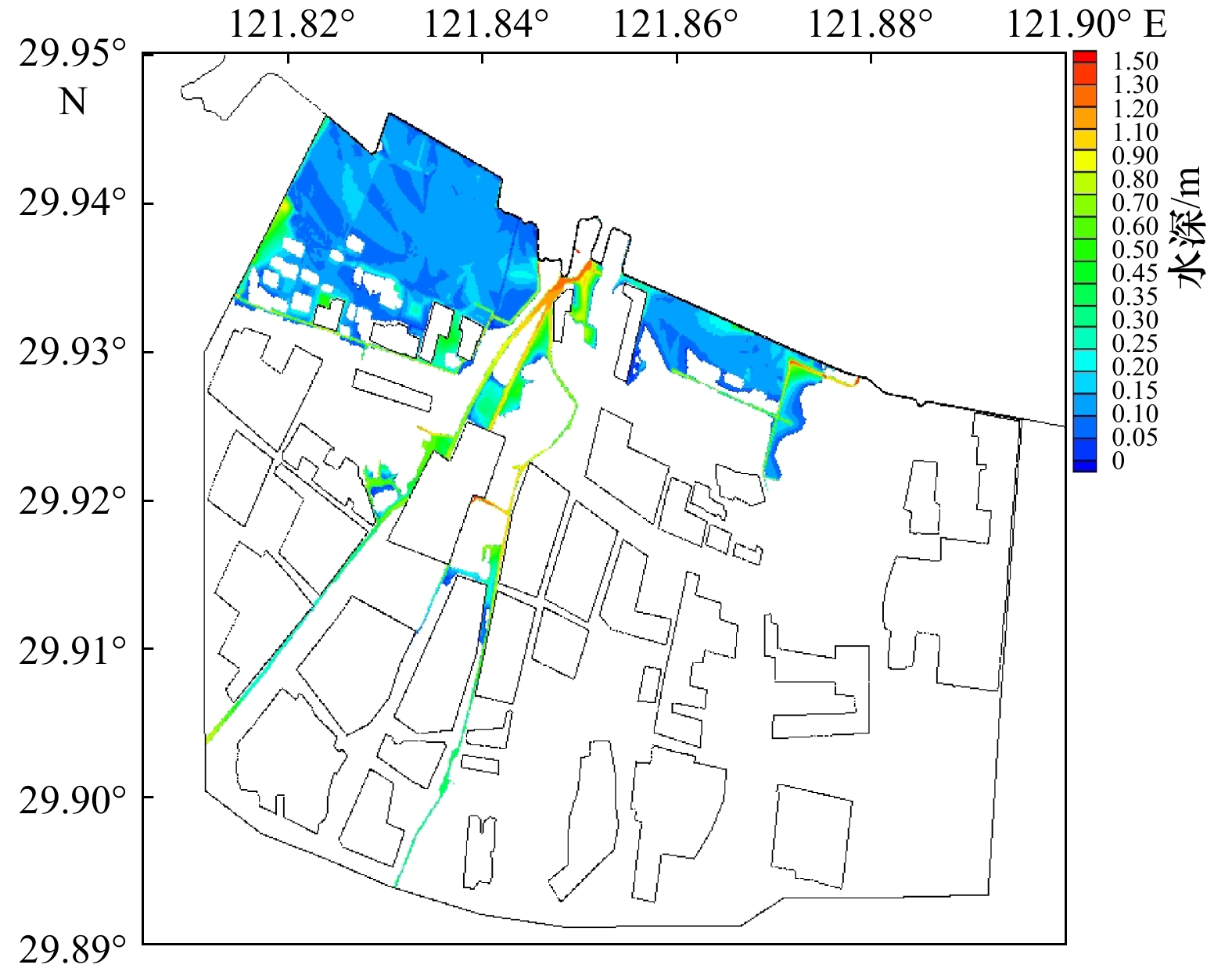

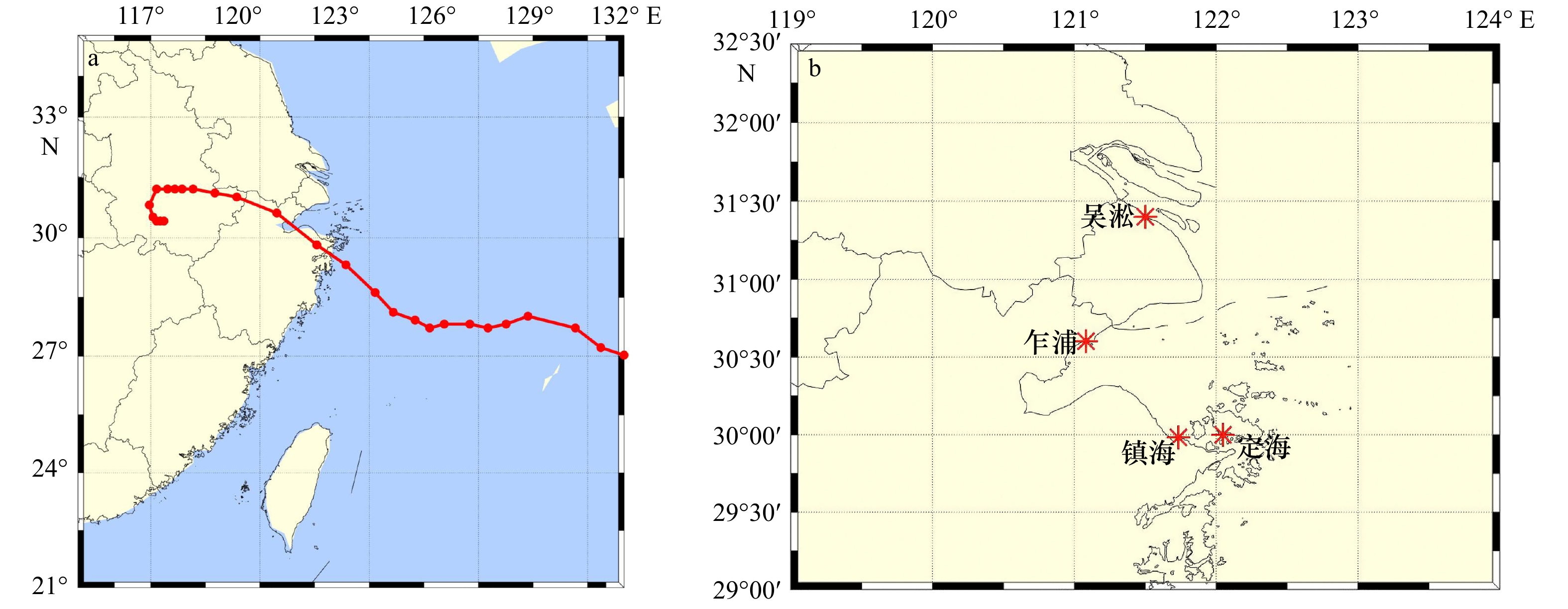

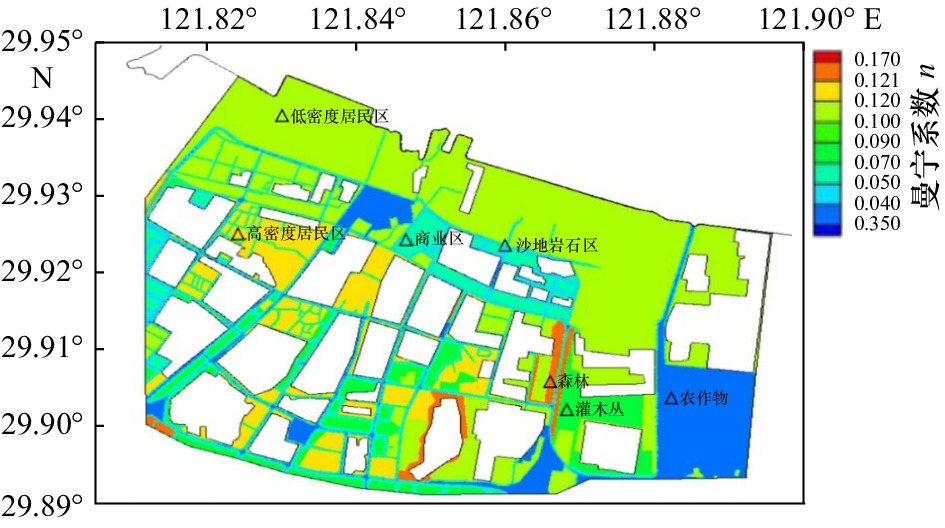

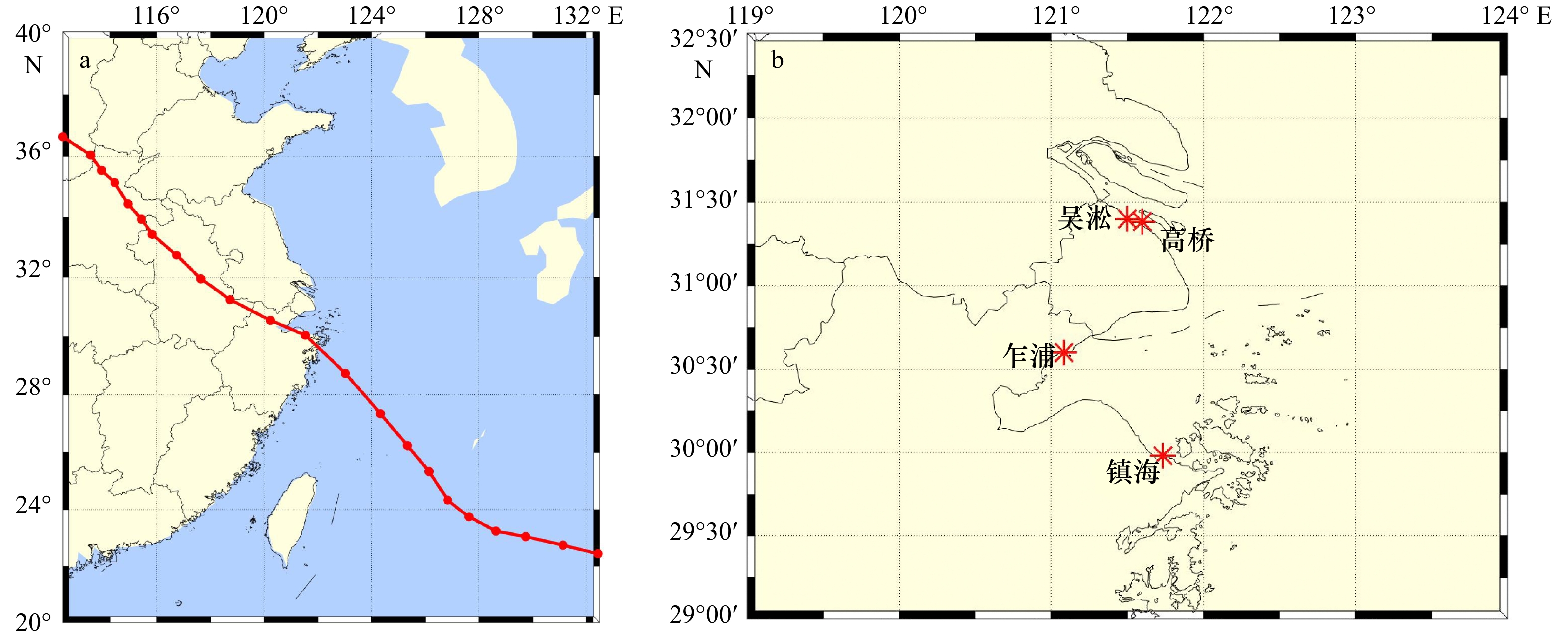

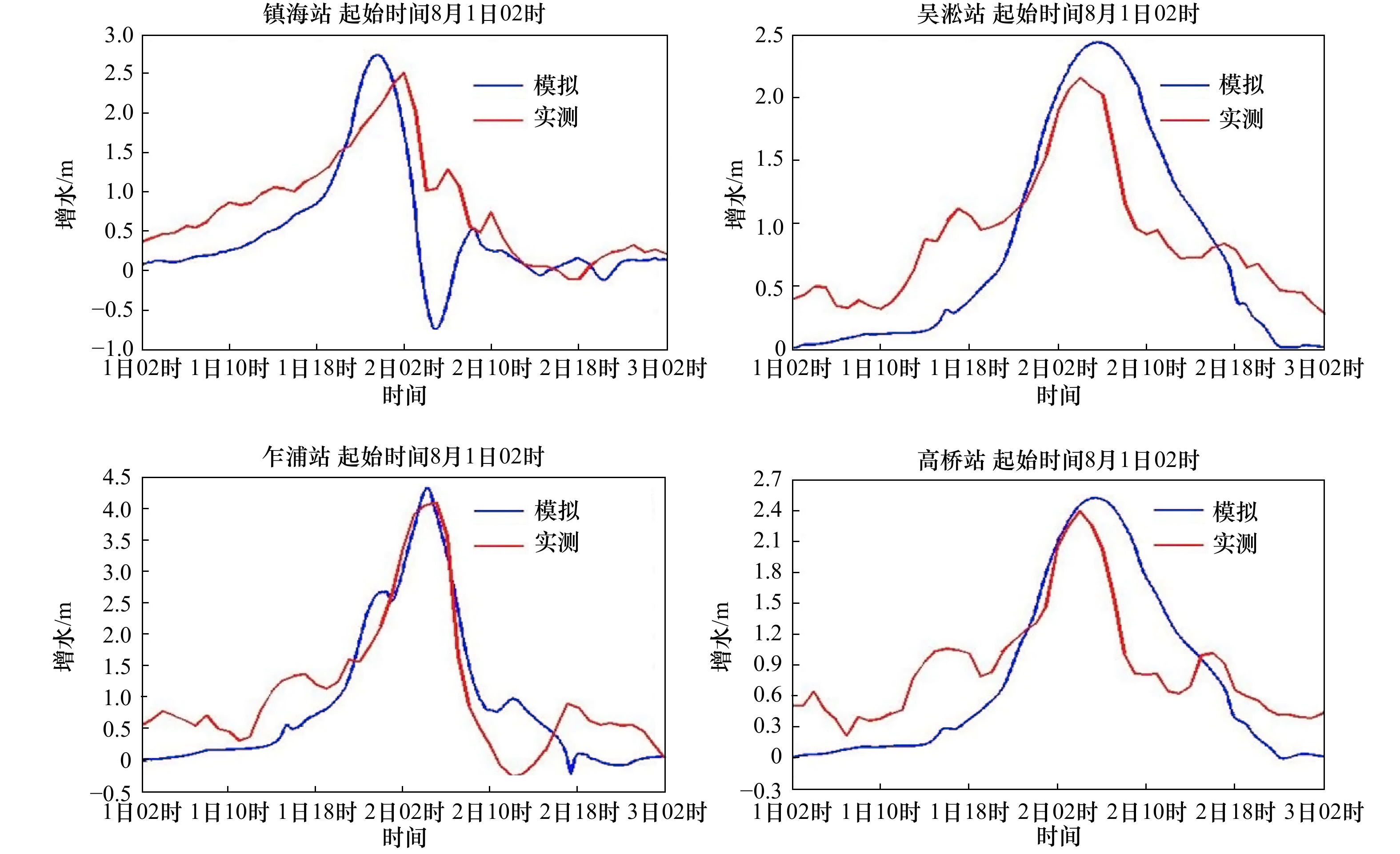

This paper uses the ADCIRC model to establish a block-scale storm surge inundation model in the Beilun District, Ningbo City, with a land resolution of 5−10 m in the Beilun District. The simulation results show the overall process of inundation flooding urban street buildings, and detail description of the flow of water in the complex distribution of blocks and buildings, as well as changes in water depth near different buildings, which are more refined than previous inundation simulations, reflecting the advantages of block scale grid. Numerical simulation results show that this model can simulate the storm surge process of No. 1211 Typhoon “Haikui” and No. 5612 Typhoon “Wanda” well. Satellite remote sensing images are used to classify features in the Beilun District, and the influence of changes in the friction of different underlying surfaces on inundation simulation is considered. Comparing the results of the simulation experiment without considering the underlying surface friction, the submerged area is reduced by 21.4%, and the water depth in most areas is reduced to 0.1−0.2 m. The block-scale grid shows the degree of water depth reduction and the change of submerged area in different areas.
- storm surge,
- inundation,
- block scale,
- underlying surface friction

FullText(HTML)

References(16)

References

[1]	石先武, 谭骏, 国志兴, 等. 风暴潮灾害风险评估研究综述[J]. 地球科学进展, 2013, 28(8): 866−874. doi: 10.11867/j.issn.1001-8166.2013.08.0866 Shi Xianwu, Tan Jun, Guo Zhixing, et al. A review of risk assessment of storm surge disaster[J]. Advances in Earth Science, 2013, 28(8): 866−874. doi: 10.11867/j.issn.1001-8166.2013.08.0866
[2]	冯士筰. 风暴潮的研究进展[J]. 世界科技研究与发展, 1998, 20(4): 44−47. Feng Shizuo. The advance of researches on storm surges[J]. World Sci-Tech Research & Development, 1998, 20(4): 44−47.
[3]	王喜年. 风暴潮预报知识讲座[J]. 海洋预报, 2001, 18(1): 73−78. doi: 10.3969/j.issn.1003-0239.2001.01.010 Wang Xinian. Lectures on storm surge forecasting[J]. Marine Forecasts, 2001, 18(1): 73−78. doi: 10.3969/j.issn.1003-0239.2001.01.010
[4]	郑国诞, 谢亚力, 胡金春, 等. 台州温岭市风暴潮淹没危险性分析[J]. 海洋预报, 2016, 33(6): 40−50. doi: 10.11737/j.issn.1003-0239.2016.06.005 Zheng Guodan, Xie Yali, Hu Jinchun, et al. Inundation risk assessment of typhoon storm surge along Taizhou Wenling City[J]. Marine Forecasts, 2016, 33(6): 40−50. doi: 10.11737/j.issn.1003-0239.2016.06.005
[5]	傅赐福, 于福江, 王培涛, 等. 滨海新区温带风暴潮灾害风险评估研究[J]. 海洋学报, 2013, 35(1): 55−62. Fu Cifu, Yu Fujiang, Wang Peitao, et al. A study on extratropical storm surge disaster risk assessment at Binhai New Area[J]. Haiyang Xuebao, 2013, 35(1): 55−62.
[6]	李勇, 田立柱, 裴艳东, 等. 渤海湾西部风暴潮漫滩数值模拟[J]. 地质通报, 2016, 35(10): 1638−1645. doi: 10.3969/j.issn.1671-2552.2016.10.011 Li Yong, Tian Lizhu, Pei Yandong, et al. Numerical simulation of storm surge inundation in the west zone of Bohai Bay[J]. Geological Bulletin of China, 2016, 35(10): 1638−1645. doi: 10.3969/j.issn.1671-2552.2016.10.011
[7]	Yang Jie, Li Linlin, Zhao Kuifeng, et al. A comparative study of Typhoon Hato (2017) and Typhoon Mangkhut (2018)—their impacts on coastal inundation in Macau[J]. Journal of Geophysical Research: Oceans, 2019, 124(12): 9590−9619. doi: 10.1029/2019JC015249
[8]	Luettich R A, Westerrink J J. ADCIRC user manual: A (Parallel) advanced circulation model for oceanic[R]. Coastal and Estuarine Waters, 2006. http://www.marine.unc.edu/C_CATS/adcirc
[9]	Blain C A, Westerink J J, Luettich R A Jr. Grid convergence studies for the prediction of hurricane storm surge[J]. International Journal of Numerical Methods in Fluids, 1998, 26(4): 369−401. doi: 10.1002/(SICI)1097-0363(19980228)26:4<369::AID-FLD624>3.0.CO;2-0
[10]	Greg J. Holland. An analytic model of the wind and pressure profiles in hurricanes[J]. Monthly weather review, 1980, 108(8): 1212−1218.
[11]	Garratt J R. Review of drag coefficients over oceans and continents[J]. Monthly weather review, 1977, 105(7): 915−929.
[12]	郑杰. 5612号台风增水过程的两种数值模拟方法比较[J]. 中国高新技术企业, 2011(19): 30−32. Zheng Jie. Comparison of two numerical simulation methods for the water increasing process of typhoon No. 5612[J]. China High-Tech Enterprises, 2011(19): 30−32.
[13]	李文杰, 邵学强. 甬江流域入海径流量研究[J]. 浙江水利科技, 2007(3): 53−55, 59. doi: 10.3969/j.issn.1008-701X.2007.03.022 Li Wenjie, Shao Xueqiang. Research on runoff amount into sea in Yongjiang River basin[J]. Zhejiang Hydrotechnics, 2007(3): 53−55, 59. doi: 10.3969/j.issn.1008-701X.2007.03.022
[14]	任剑波, 施伟勇. 风拖曳力系数和曼宁系数对风暴潮流模拟的影响[J]. 人民长江, 2017, 48(18): 86−92. Ren Jianbo, Shi Weiyong. Influence of wind drag coefficient and Manning coefficient on storm current simulation[J]. Yangtze River, 2017, 48(18): 86−92.
[15]	Akbar M K, Kanjanda S, Musinguzi A. Effect of bottom friction, wind drag coefficient, and meteorological forcing in Hindcast of hurricane Rita storm surge using SWAN + ADCIRC model[J]. Journal of Marine Science and Engineering, 2017, 5(3): 38. doi: 10.3390/jmse5030038
[16]	Chu Dongdong, Zhang Jicai, Wu Yongsheng, et al. Sensitivities of modelling storm surge to bottom friction, wind drag coefficient, and meteorological product in the East China Sea[J]. Estuarine, Coastal and Shelf Science, 2019, 231: 106460. doi: 10.1016/j.ecss.2019.106460
