Experimental investigation of breaking waves impacting a vertical pile in a large model scale

Tai Bing; Ma Yuxiang; Yang Siyu; Zhang Huaqing; Chen Songgui; Dong Guohai

doi:10.12284/hyxb2021137

Volume 43 Issue 10

Oct. 2021

Turn off MathJax

Article Contents

Article Navigation > Haiyang Xuebao > 2021 > 43(10): 97-105

Tai Bing，Ma Yuxiang，Yang Siyu, et al. Experimental investigation of breaking waves impacting a vertical pile in a large model scale[J]. Haiyang Xuebao，2021, 43(10)：97–105 doi: 10.12284/hyxb2021137

Citation:

PDF( 1590 KB)

Experimental investigation of breaking waves impacting a vertical pile in a large model scale

doi: 10.12284/hyxb2021137

1.
State Key Laboratory of Coastal and Offshore Engineering, Dalian University of Technology, Dalian 116024, China
2.
Tianjin Research Institute for Water Transport Engineering, Ministry of Transport, Tianjin 300456, China

Received Date: 2020-07-08
Rev Recd Date: 2021-04-05

Available Online: 2021-08-26

Publish Date: 2021-10-30

Abstract

Abstract

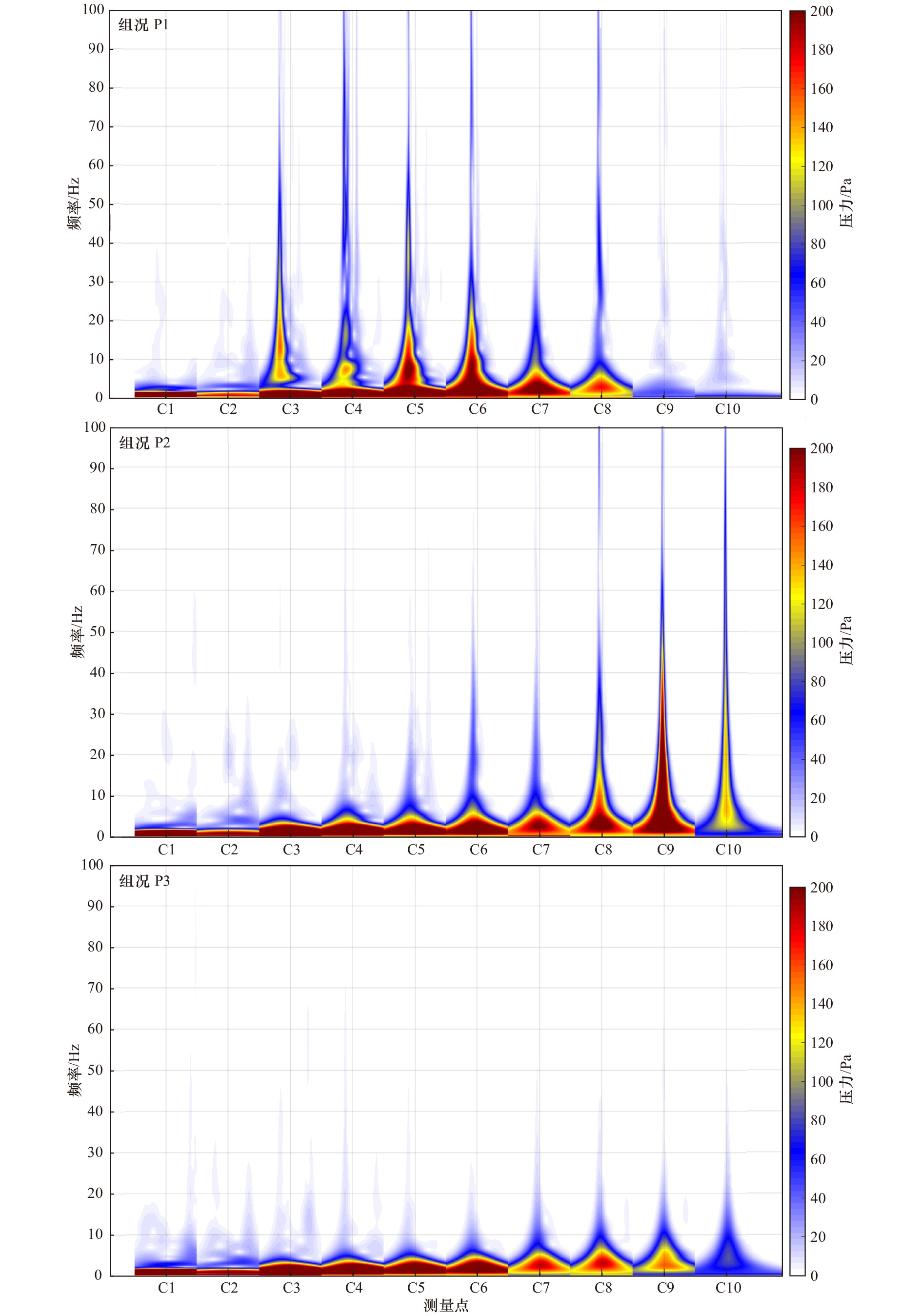

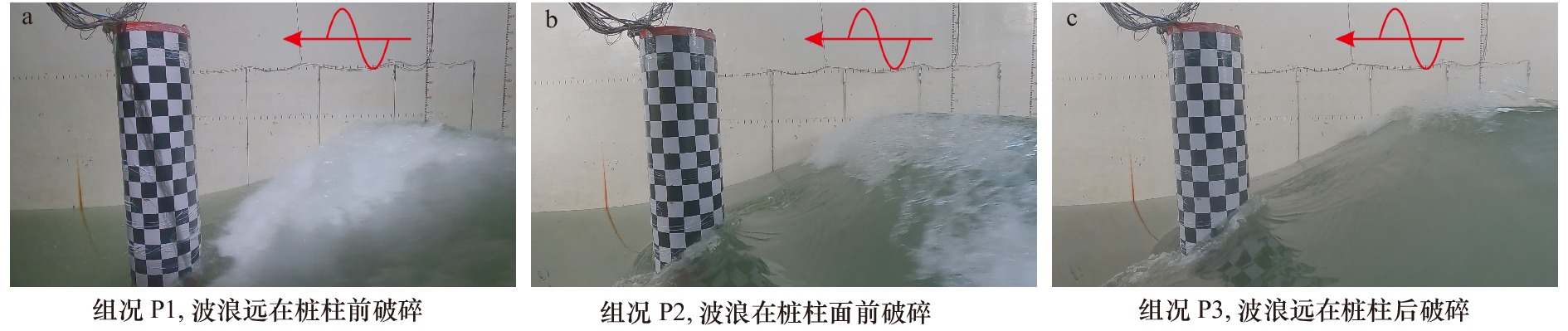

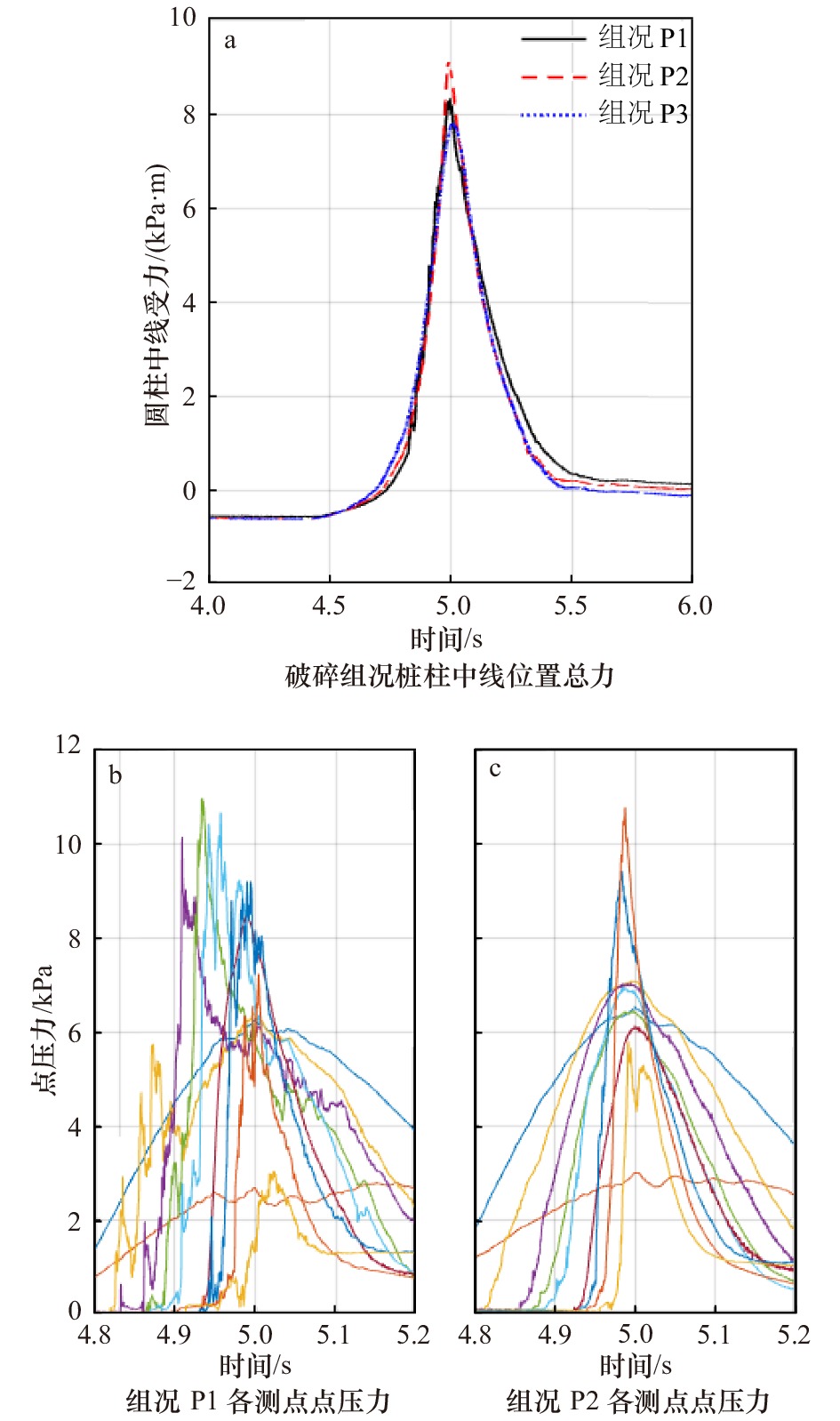

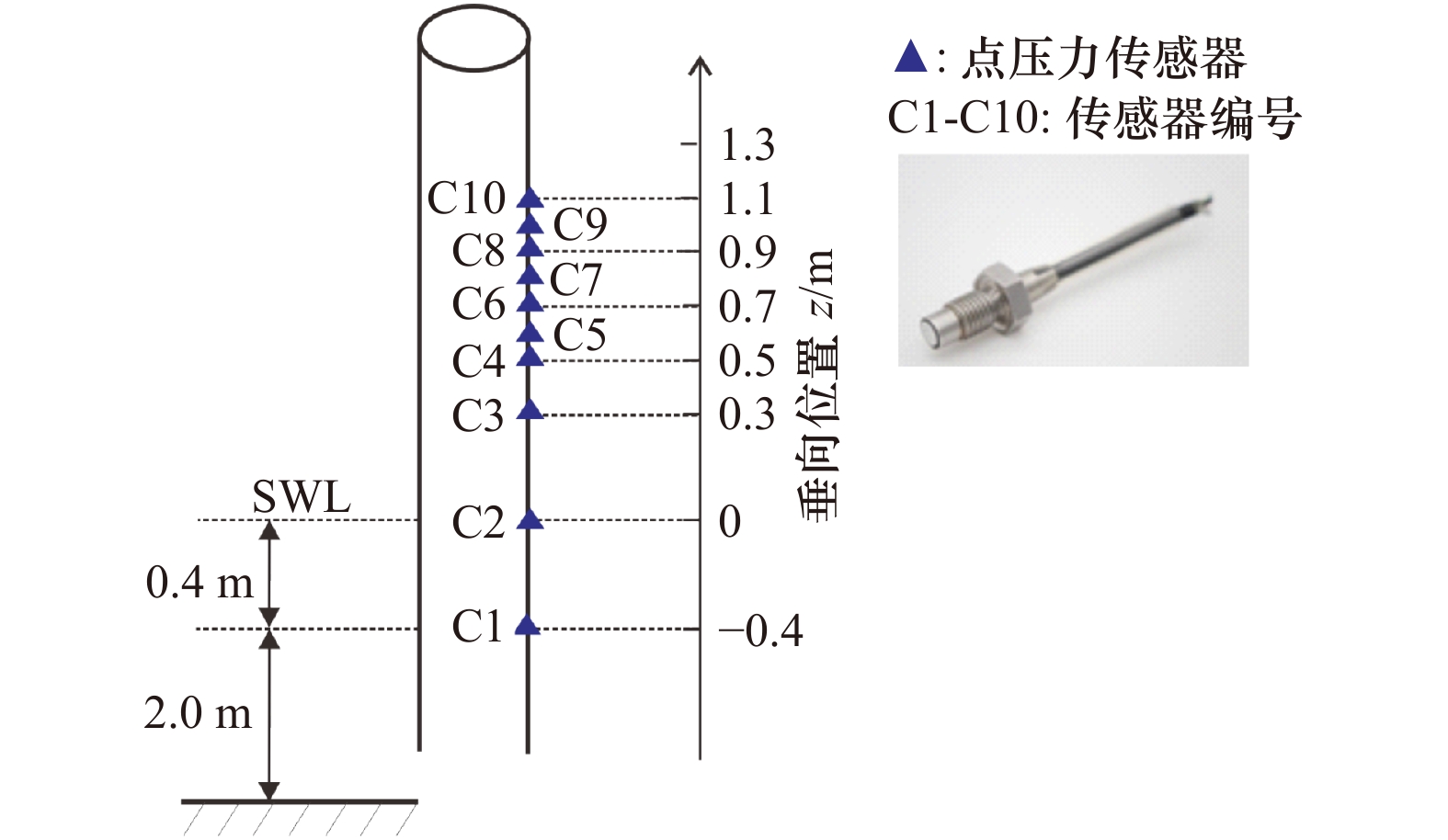

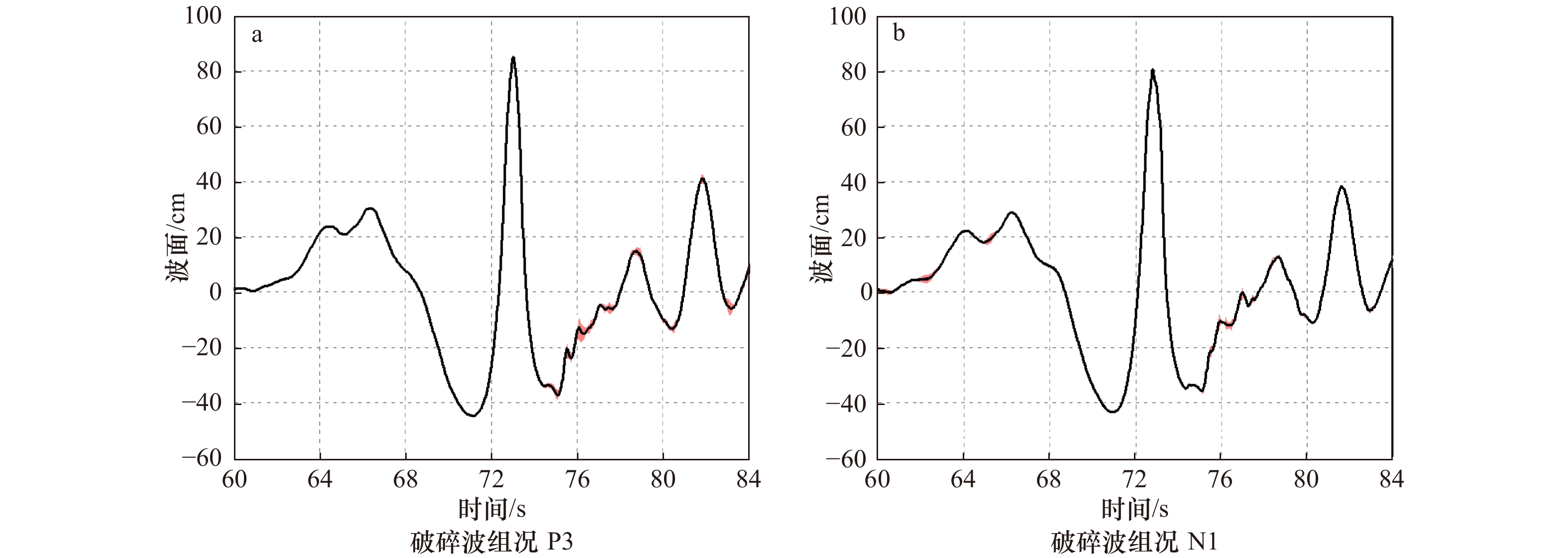

Wave breaking is the most prominent feature of the ocean surface and it induces huge loads on structures. In this study, laboratory experiments in a large model scale are carried out to study wave forces on a vertical pile induced by breaking waves and non-breaking extreme waves, and to get insight the magnitude and the distribution of the wave forces, pressure transducers are installed in the face of the tested pile. The results show that in repeated experiments the wave pressures induced by the breaking waves present a wider variance compared with non-breaking waves; as the breaking density at the pile increases and the measuring point gets closer to wave crest, the variance of pressures increases; the maximum measured pressures can reach three times of the maximum hydrostatic pressure and occur at around 1.2 times of the maximum water surface. Based on the continuous wavelet spectrums of the wave pressures, different breaking phases show different characteristics: when the wave breaks far in front of the pile, its spectrum has a high frequency range with a wider vertical distribution, indicting more complicated pressures; when the wave breaks at the front of the pile, the wave force reaches a highest value.
- large scale experiments,
- breaking waves,
- pile,
- wave force

FullText(HTML)

References(17)

References

[1]	刘殿勇. 弱三维波浪破碎的实验研究[D]. 大连: 大连理工大学, 2018. Liu Dianyong. Experimental investigation of weakly three-dimensional wave breaking[D]. Dalian: Dalian University of Technology, 2018.
[2]	Wienke J, Oumeraci H. Breaking wave impact force on a vertical and inclined slender pile-theoretical and large-scale model investigations[J]. Coastal Engineering, 2005, 52(5): 435−462. doi: 10.1016/j.coastaleng.2004.12.008
[3]	赫岩莉, 马玉祥, 马小舟, 等. 有限水深下独立波群的能量变化试验研究[J]. 海洋工程, 2019, 37(1): 56−63, 74. He Yanli, Ma Yuxiang, Ma Xiaozhou, et al. Experimental investigation on energy evolution of single wave group at finite water depth[J]. The Ocean Engineering, 2019, 37(1): 56−63, 74.
[4]	Chan E S, Cheong H F, Tan B C. Laboratory study of plunging wave impacts on vertical cylinders[J]. Coastal Engineering, 1995, 25(1/2): 87−107.
[5]	Ma Yuxiang, Tai Bing, Dong Guohai, et al. Experimental study of plunging solitary waves impacting a vertical slender cylinder[J]. Ocean Engineering, 2020, 202: 107197.
[6]	Tai Bing, Ma Yuxiang, Niu Xuyang, et al. Experimental investigation of impact forces induced by plunging breakers on a vertical cylinder[J]. Ocean Engineering, 2019, 189: 106362. doi: 10.1016/j.oceaneng.2019.106362
[7]	Dias F, Ghidaglia J M. Slamming: Recent progress in the evaluation of impact pressures[J]. Annual Review of Fluid Mechanics, 2018, 50(1): 243−273. doi: 10.1146/annurev-fluid-010816-060121
[8]	Bredmose H, Bullock G N, Hogg A J. Violent breaking wave impacts. Part 3. Effects of scale and aeration[J]. Journal of Fluid Mechanics, 2015, 765: 82−113. doi: 10.1017/jfm.2014.692
[9]	董玉山. LNG液舱晃荡冲击比尺效应的实验研究[D]. 大连: 大连理工大学, 2015. Dong Yushan. Experimental investigation of scaling effects on sloshing impact in LNG tanks[D]. Dalian: Dalian University of Technology, 2015.
[10]	Bogaert H. An experimental investigation of sloshing impact physics in membrane LNG tanks on floating structures[D]. Delft: Delft University of Technology, 2018.
[11]	Hofland B, Kaminski M L, Wolters G. Large scale wave impacts on a vertical wall[J]. Coastal Engineering Proceedings, 2011, 1(32): 15.
[12]	Hildebrandt A. Hydrodynamics of breaking waves on offshore wind turbine structures[D]. Hannover: Leibniz Universität Hannover, 2013.
[13]	陈松贵, 郑金海, 王泽明, 等. 珊瑚岛礁护岸对礁坪上极端波浪传播特性的影响[J]. 水利水运工程学报, 2019(6): 59−68. doi: 10.12170/201906007 Chen Songgui, Zheng Jinhai, Wang Zeming, et al. Experimental study on impact of revetments on extreme wave propagation characteristics on coral reefs[J]. Hydro-Science and Engineering, 2019(6): 59−68. doi: 10.12170/201906007
[14]	耿宝磊, 郑宝友, 孟祥玮, 等. 天科院大比尺波浪水槽的建设与应用前景[J]. 水道港口, 2014, 35(4): 415−421. doi: 10.3969/j.issn.1005-8443.2014.04.026 Geng Baolei, Zheng Baoyou, Meng Xiangwei, et al. Construction and application prospect of the large scale wave flume in TIWTE[J]. Journal of Waterway and Harbor, 2014, 35(4): 415−421. doi: 10.3969/j.issn.1005-8443.2014.04.026
[15]	Liu Dianyong, Ma Yuxiang, Dong Guohai, et al. An experimental study of weakly three-dimensional non-breaking and breaking waves[J]. European Journal of Mechanics-B/Fluids, 2015, 52: 206−216. doi: 10.1016/j.euromechflu.2015.03.007
[16]	Paulsen B T, de Sonneville B, van der Meulen M, et al. Probability of wave slamming and the magnitude of slamming loads on offshore wind turbine foundations[J]. Coastal Engineering, 2019, 143: 76−95. doi: 10.1016/j.coastaleng.2018.10.002
[17]	Ma Yuxiang, Dong Guohai, Perlin M, et al. Higher-harmonic focused-wave forces on a vertical cylinder[J]. Ocean Engineering, 2009, 36(8): 595−604. doi: 10.1016/j.oceaneng.2009.02.009
