Characteristics of stratification in the Jiaojiang Estuary

Yao Yanming; Zheng Yiqun; Zhao Xinyu; Yuan Jinxiong; Li Li

doi:10.12284/hyxb2021135

Volume 43 Issue 10

Oct. 2021

Turn off MathJax

Article Contents

Article Navigation > Haiyang Xuebao > 2021 > 43(10): 23-37

Yao Yanming，Zheng Yiqun，Zhao Xinyu, et al. Characteristics of stratification in the Jiaojiang Estuary[J]. Haiyang Xuebao，2021, 43(10)：23–37 doi: 10.12284/hyxb2021135

Citation:

Yao Yanming，Zheng Yiqun，Zhao Xinyu, et al. Characteristics of stratification in the Jiaojiang Estuary[J]. Haiyang Xuebao，2021, 43(10)：23–37 doi: 10.12284/hyxb2021135

Citation:

Yao Yanming，Zheng Yiqun，Zhao Xinyu, et al. Characteristics of stratification in the Jiaojiang Estuary[J]. Haiyang Xuebao，2021, 43(10)：23–37 doi: 10.12284/hyxb2021135

PDF( 1751 KB)

Characteristics of stratification in the Jiaojiang Estuary

doi: 10.12284/hyxb2021135

1.
Ocean College, Zhejiang University, Zhoushan 316021, China
2.
Taizhou Port and Shipping Administration Bureau, Taizhou 318001, China

Received Date: 2020-07-06
Rev Recd Date: 2021-04-17

Available Online: 2021-09-02

Publish Date: 2021-10-30

Abstract

Abstract

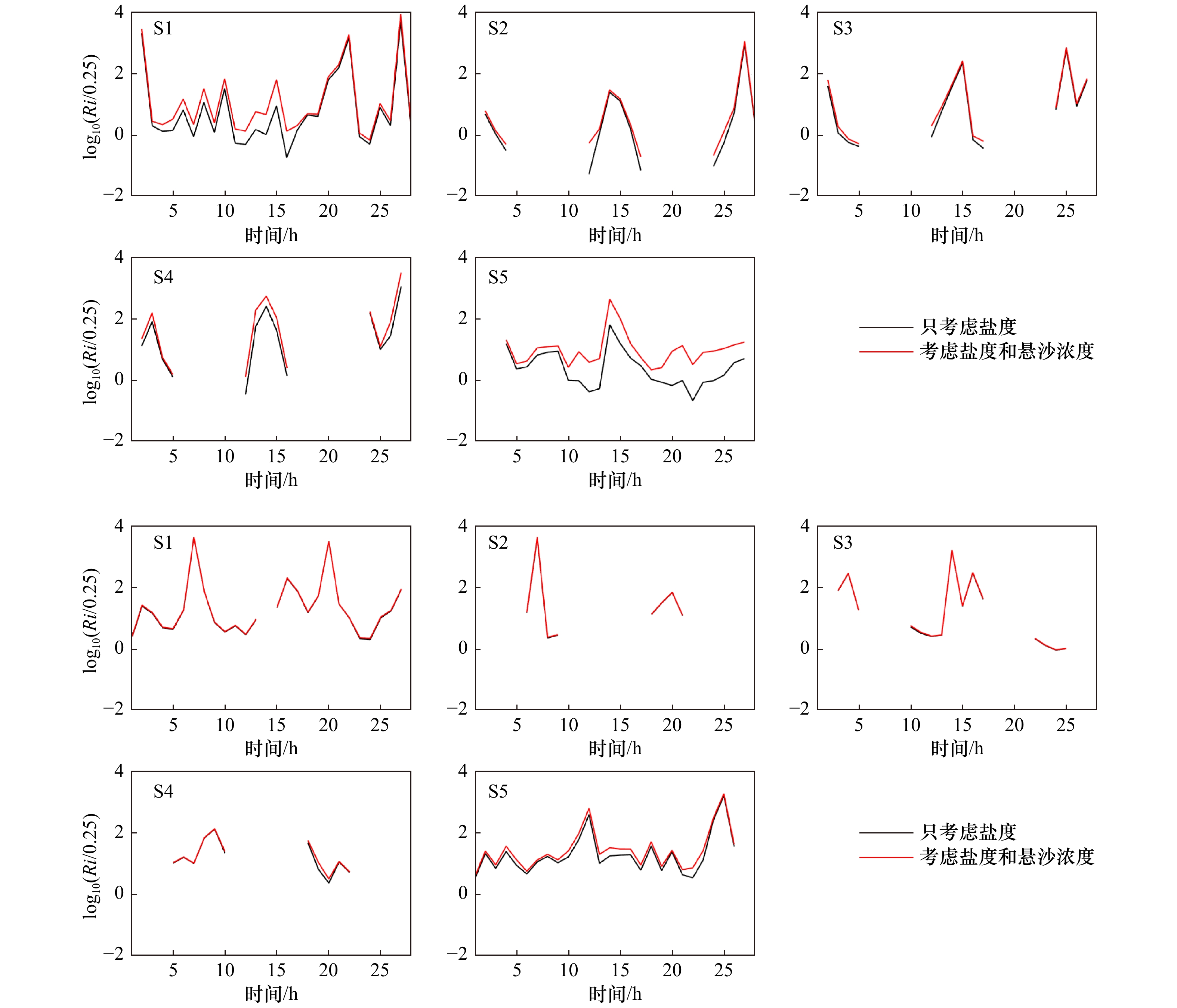

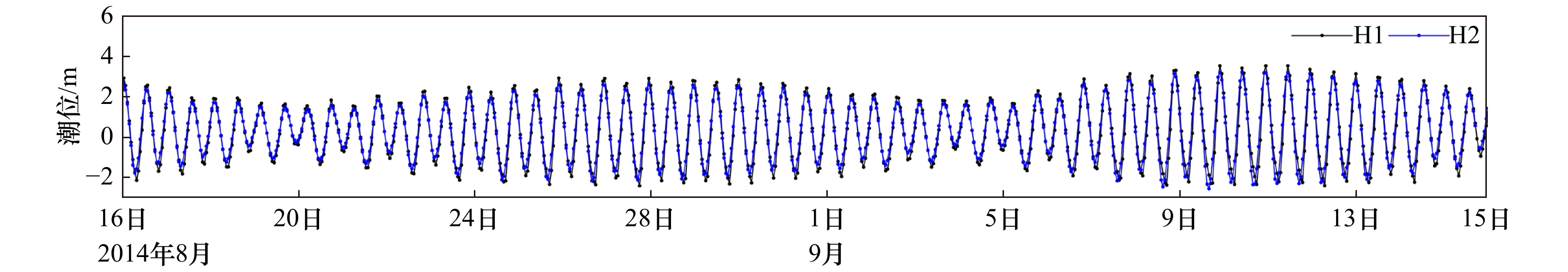

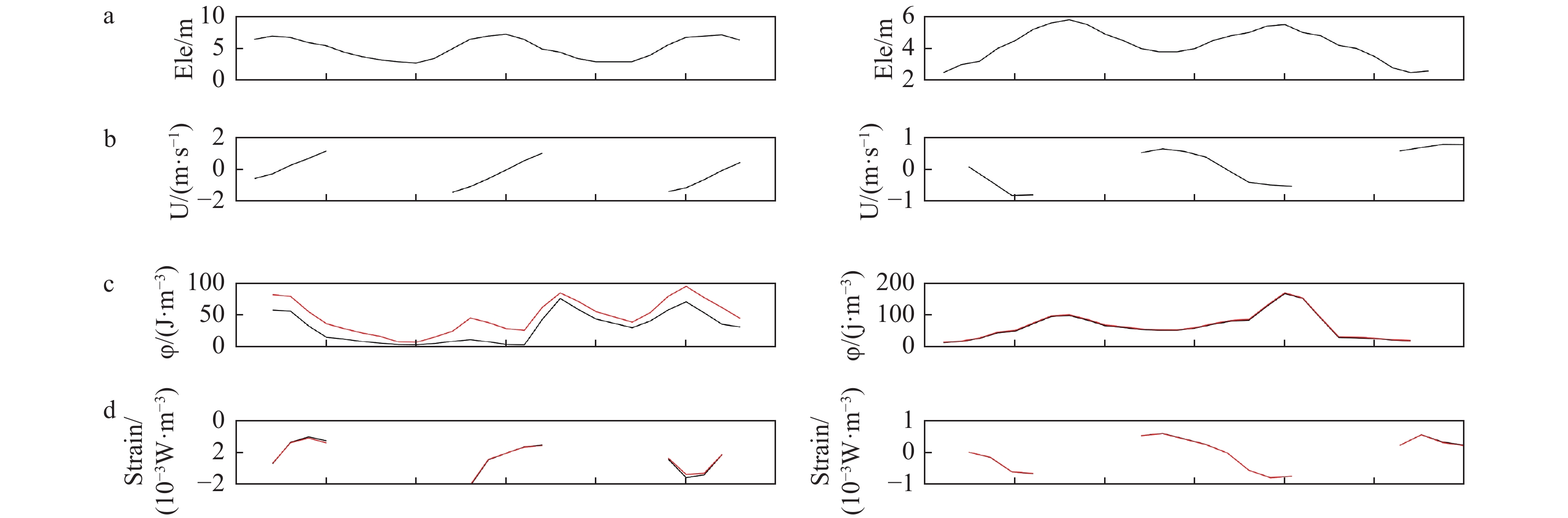

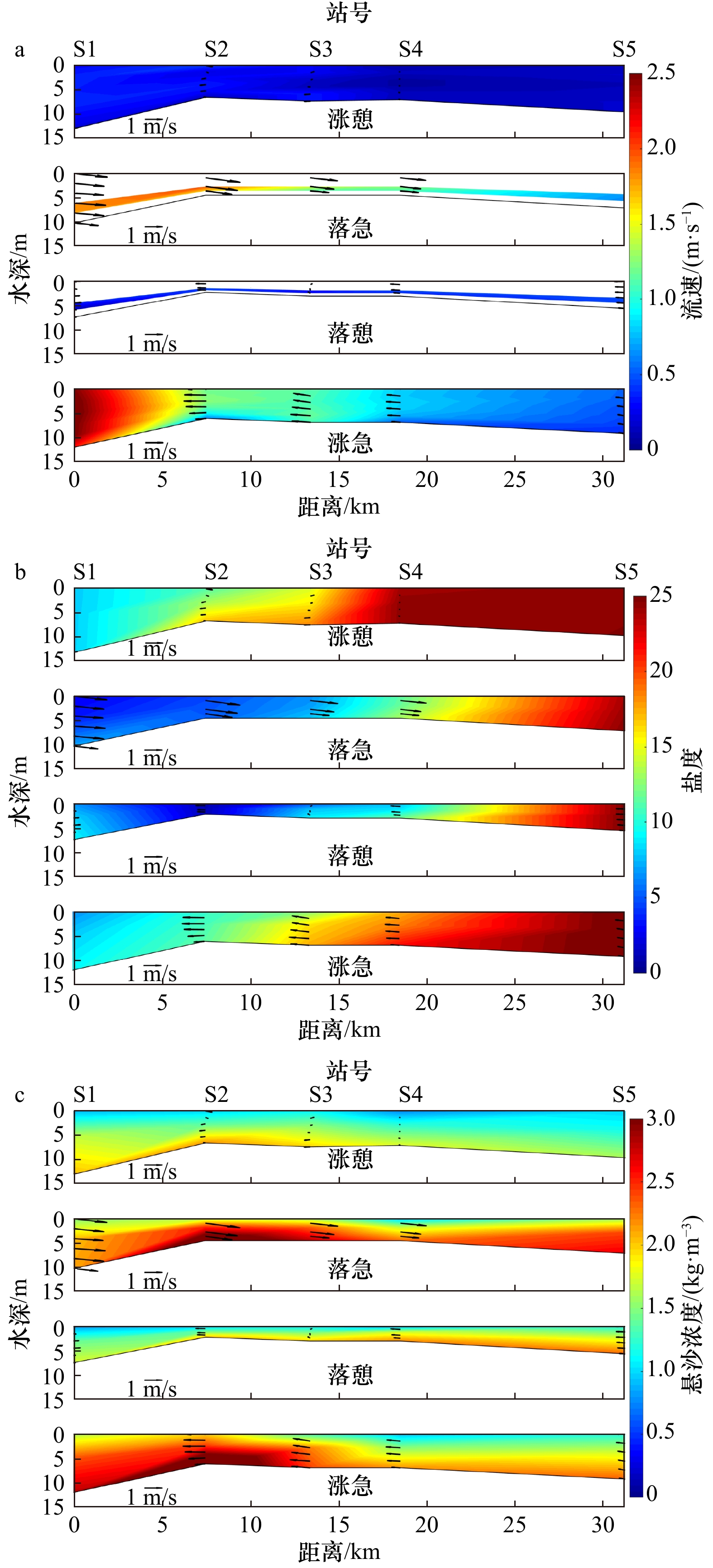

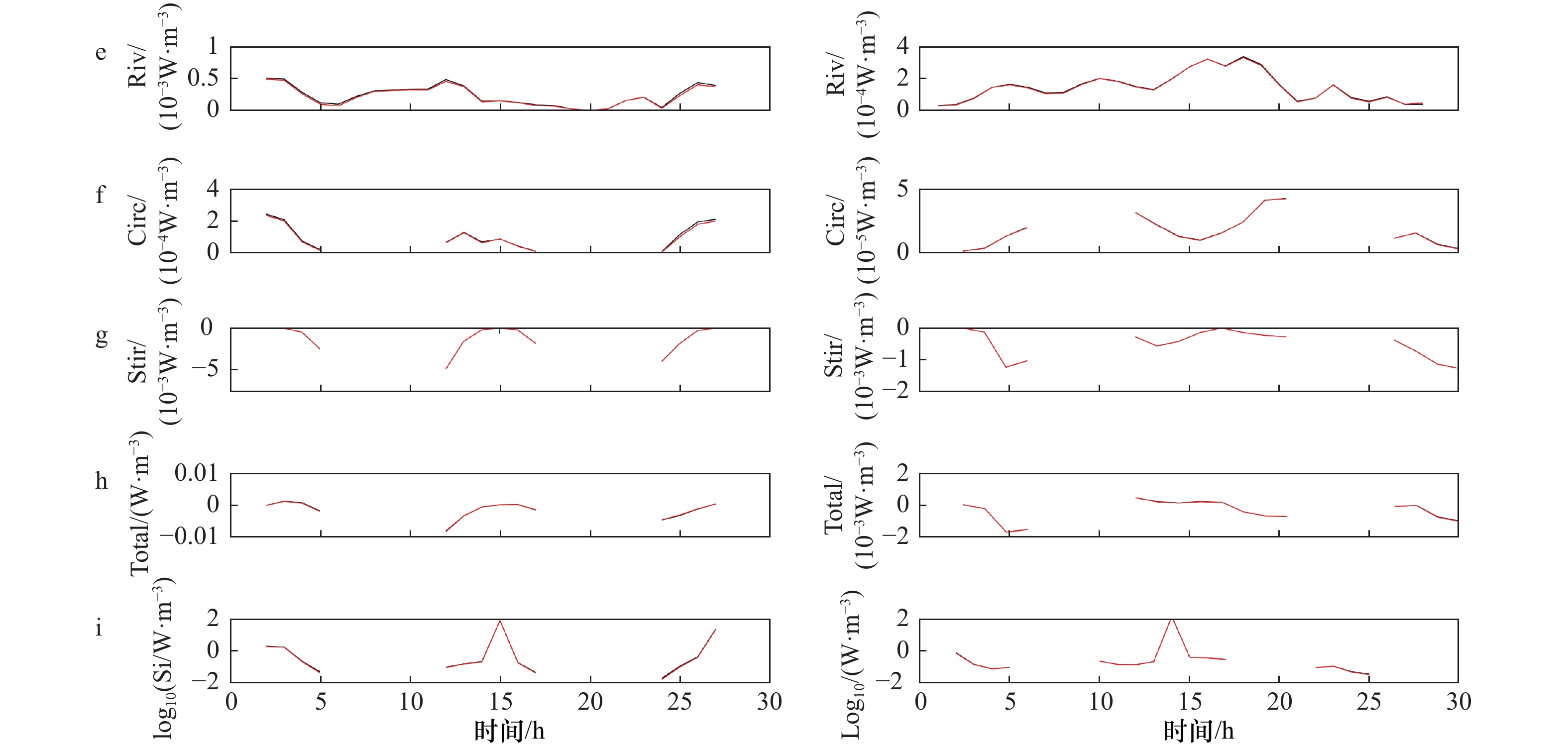

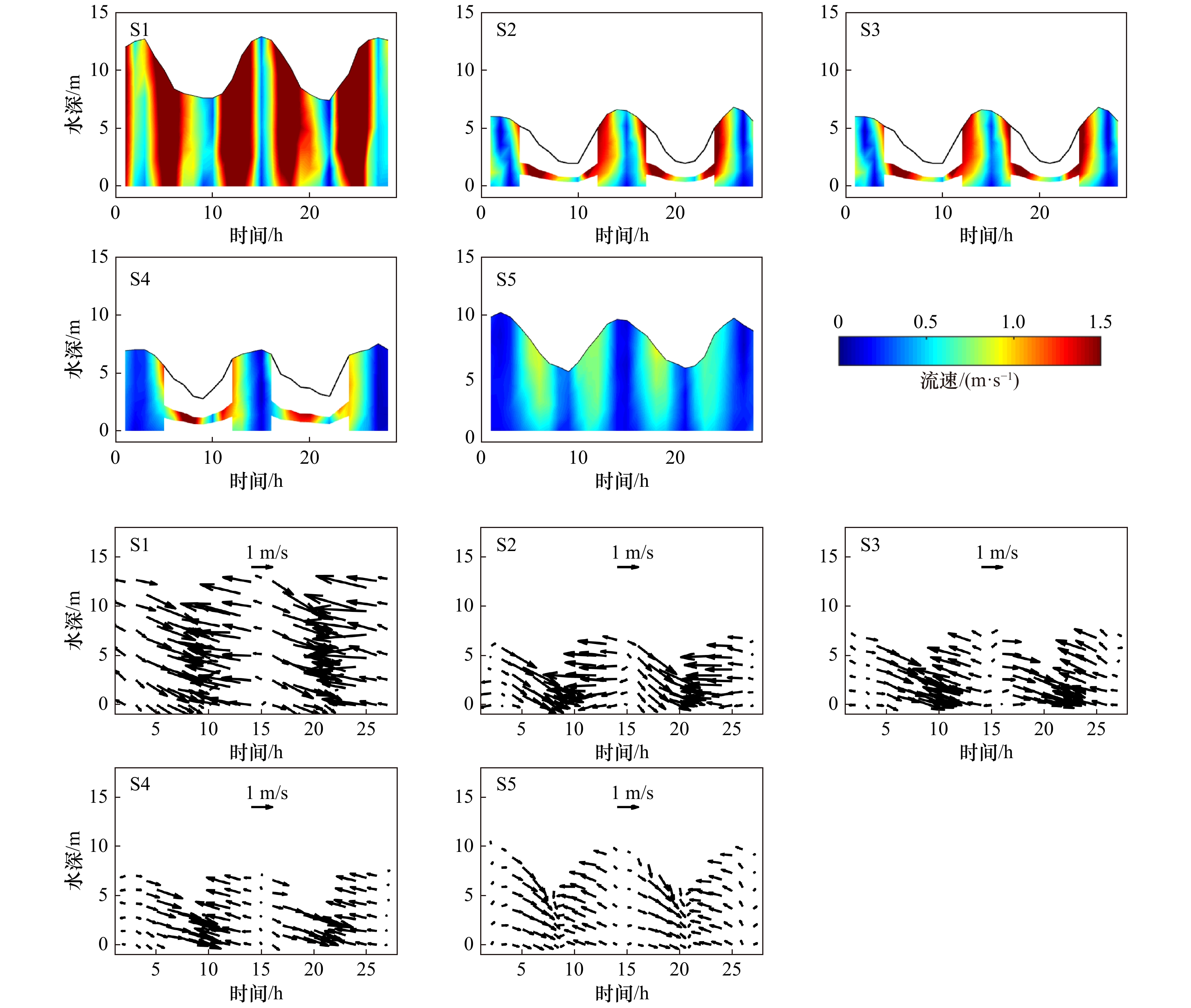

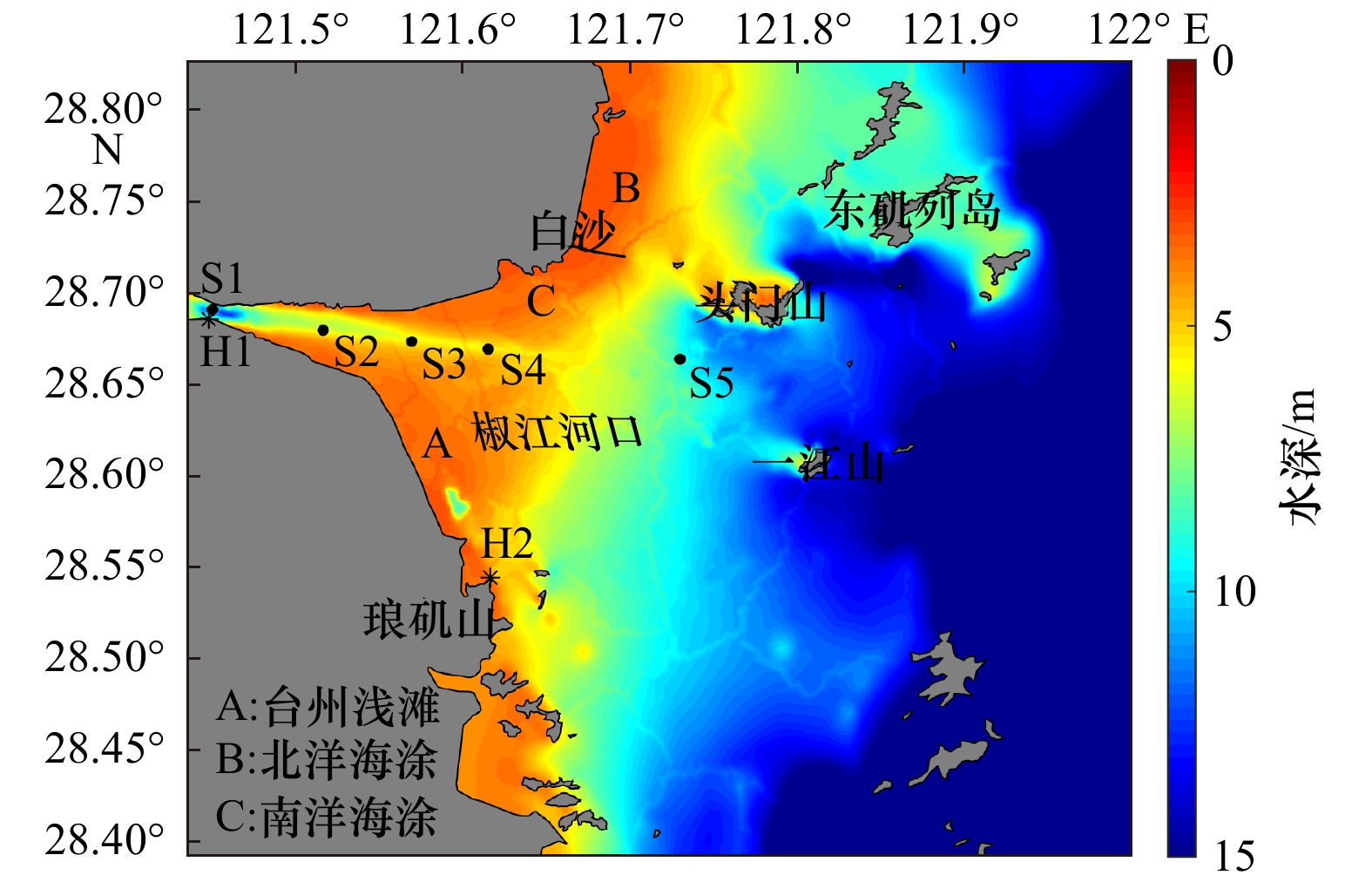

The elevation, current, salinity and suspended sediment concentration (SSC) data were observed during spring and neap tides in the Jiaojiang Estuary. The spatial and temporal characteristics of tides, salinity and SSC in the main tidal channel of the estuary were studied, and the stratification physical mechanism under the action of high turbidity and strong tides was explained, using the field data. SSC and salinity during spring tides were higher than those during neap tides, and SSC during ebb periods was higher than the flood periods along the main channel. Salinity varied with the tidal currents, and the salinity water front appeared around the Station S2. A turbidity maximum zone appeared near the salt water front. SSC decreased and the salinity increased towards the sea. SSC and salinity increased with the water depth. According to the Richardson number and mixing parameters, stratification caused by salinity and SSC changes with tides. Stratification during flood periods was stronger than during ebb periods. Stratification lasted the longest time and was more extensive during neap tides. The mixing parameter varied with the tidal periods, and the value was high/below the critical value of 1.0 during spring/neap tides. The tidal strain term was an important role for the change rate of the potential energy anomaly. The stratified state changed to a mixed state during neap tides, while the opposite change occurred during flood tides.
- suspended sediment concentration,
- salinity,
- stratification,
- tidal mixing,
- Jiaojiang Estuary

FullText(HTML)

References(33)

References

[1]	Allahdadi M N, Li Chunyan. Effect of stratification on current hydrodynamics over Louisiana shelf during Hurricane Katrina[J]. Water Science and Engineering, 2017, 10(2): 154−165. doi: 10.1016/j.wse.2017.03.012
[2]	Scully M E, Geyer W R. The role of advection, straining, and mixing on the tidal variability of estuarine stratification[J]. Journal of Physical Oceanography, 2012, 42(5): 855−868. doi: 10.1175/JPO-D-10-05010.1
[3]	Geyer W R. The importance of suppression of turbulence by stratification on the estuarine turbidity maximum[J]. Estuaries, 1993, 16(1): 113−125. doi: 10.2307/1352769
[4]	Shen Huanting, Mao Zhichang, Gu Yuliang. Impact of south-north water transfer (east route) on saltwater intrusion in the Changjiang Estuary with consideration of its countermeasures[J]. Resources and Environment in the Yangtza Basin, 2002, 11(2): 150−154.
[5]	Figueroa S M, Lee G H, Shin H J. Effects of an estuarine dam on sediment flux mechanisms in a shallow, macrotidal estuary[J]. Estuarine, Coastal and Shelf Science, 2020, 238: 106718. doi: 10.1016/j.ecss.2020.106718
[6]	Li Zhanhai, Jia Jianjun, Wu Yongsheng, et al. Correction to: Vertical distributions of suspended sediment concentrations in the turbidity maximum zone of the periodically and partially stratified Changjiang Estuary[J]. Estuaries and Coasts, 2019, 42(7): 1970. doi: 10.1007/s12237-019-00616-z
[7]	Thomson W. Hydrokinetic solutions and observations[J]. Philosophical Magazine, 1871, 42(281): 362−377.
[8]	Holzman B. The influence of stability on evaporation[J]. Annals of the New York Academy of Sciences, 1943, 44(1): 13−18. doi: 10.1111/j.1749-6632.1943.tb31289.x
[9]	Monismith S G. Contemporary issues in estuarine physics: Mixing in estuaries[D]. Cambridge: Cambridge University, 2010: 145−185.
[10]	Linden P F. Mixing in stratified fluids[J]. Geophysical & Astrophysical Fluid Dynamics, 1979, 13(1): 3−23.
[11]	Bowden K F. Turbulent mixing in estuaries[J]. Ocean Management, 1981, 6(2/3): 117−135.
[12]	Simpson J H, Bowers D. Models of stratification and frontal movement in shelf seas[J]. Deep-Sea Research Part A: Oceanographic Research Papers, 1981, 28(7): 727−738. doi: 10.1016/0198-0149(81)90132-1
[13]	Simpson J H, Brown J, Matthews J, et al. Tidal straining, density currents, and stirring in the control of estuarine stratification[J]. Estuaries, 1990, 13(2): 125−132. doi: 10.2307/1351581
[14]	Monismith S G, Fong D A. A simple model of mixing in stratified tidal flows[J]. Journal of Geophysical Research, 1996, 101(C12): 28583−28595. doi: 10.1029/96JC02267
[15]	Verspecht F, Rippeth T P, Simpson J H, et al. Residual circulation and stratification in the Liverpool Bay region of freshwater influence[J]. Ocean Dynamics, 2009, 59(5): 765−779. doi: 10.1007/s10236-009-0233-2
[16]	Burchard H, Hofmeister R. A dynamic equation for the potential energy anomaly for analysing mixing and stratification in estuaries and coastal seas[J]. Estuarine, Coastal and Shelf Science, 2008, 77(4): 679−687. doi: 10.1016/j.ecss.2007.10.025
[17]	Song Dehai, Wang Xiaohua, Cao Zhenyi, et al. Suspended sediment transport in the deepwater navigation channel, Yangtze River Estuary, China, in the dry season 2009: 1. Observations over spring and neap tidal cycles[J]. Journal of Geophysical Research: Oceans, 2013, 118(10): 5555−5567. doi: 10.1002/jgrc.20410
[18]	Pu Xiang, Shi J Z, Hu Guodong, et al. Circulation and mixing along the north passage in the Changjiang River Estuary, China[J]. Journal of marine systems, 2015, 148: 213−235. doi: 10.1016/j.jmarsys.2015.03.009
[19]	Li Li, He Zhiguo, Xia Yuezhang, et al. Dynamics of sediment transport and stratification in Changjiang River Estuary, China[J]. Estuarine, Coastal and Shelf Science, 2018, 213: 1−17. doi: 10.1016/j.ecss.2018.08.002
[20]	中国海湾志编纂委员会. 中国海湾志(第十四分册)[M]. 北京: 海洋出版社, 1998. China Gulf Chronicle Compilation Committee. Gulf Annals of China (Volume 14)[M]. Beijing: China Ocean Press, 1998.
[21]	张瑾, 沈先荣, 田林. 椒江河口航道整治与效果分析[J]. 水运工程, 2009(9): 131−135. doi: 10.3969/j.issn.1002-4972.2009.09.029 Zhang Jin, Shen Xianrong, Tian Lin. Improvement and effect analysis on Jiaojiang Estuary waterway[J]. Port & Waterway Engineering, 2009(9): 131−135. doi: 10.3969/j.issn.1002-4972.2009.09.029
[22]	谢钦春, 李伯根, 夏小明, 等. 椒江河口悬沙浓度垂向分布和泥跃层发育[J]. 海洋学报, 1998, 20(6): 58−69. Xie Qinchun, Li Bogen, Xia Xiaoming, et al. Vertical distributions of suspended matter and lutoclines in the Jiaojiang Estuary[J]. Haiyang Xuebao, 1998, 20(6): 58−69.
[23]	国家技术监督局, 中华人民共和国建设部. GB50159-1992, 河流悬移质泥沙测验规范[S]. 北京: 中国标准出版社, 1992: 26-39. The State Bureau of Quality and Technical Supervision, Ministry of Construction of the People’s Republic of China. GB50159-92, Code for measurements of suspended sediment in open channels[S]. Beijing: Standards Press of China, 1992: 26−39.
[24]	Wu Shuntang. A constructive approach to local linear interplation operator[J]. Mathematical Theory and Applications, 2001, 21(3): 54−58.
[25]	Ni Zhihui, Chen Hui, Dong Lixian, et al. Measurement and analysis of vertical mixing and stratification within the plume outside the Changjiang River Estuary[J]. Journal of Shanghai Jiaotong University, 2012, 46(11): 1862−1873.
[26]	Geyer W R, Maccready P. The estuarine circulation[J]. Annual Review of Fluid Mechanics, 2014, 46(1): 175−197. doi: 10.1146/annurev-fluid-010313-141302
[27]	Burchard H, Hetland R D, Schulz E, et al. Drivers of residual estuarine circulation in tidally energetic estuaries: Straight and irrotational channels with parabolic cross section[J]. Journal of Physical Oceanography, 2011, 41(3): 548−570. doi: 10.1175/2010JPO4453.1
[28]	Bigg P H. Density of water in SI units over the range 0−40°C[J]. British Journal of Applied Physics, 2002, 18(4): 521−525.
[29]	Wang Xiaohong. Tide-induced sediment resuspension and the bottom boundary layer in an idealized estuary with a muddy bed[J]. Journal of Physical Oceanography, 2002, 32(11): 3113−3131. doi: 10.1175/1520-0485(2002)032<3113:TISRAT>2.0.CO;2
[30]	Becherer J, Burchard H, Floser G, et al. Evidence of tidal straining in well-mixed channel flow from micro-structure observations[J]. Geophysical Research Letters, 2011, 38(17): L17611.
[31]	刘伟, 范代读, 涂俊彪, 等. 椒江河口春季悬沙输运特征及通量机制研究[J]. 海洋地质与第四纪地质, 2018, 38(1): 41−51. Liu Wei, Fan Daidu, Tu Junbiao, et al. Suspended transportation and flux mechanism of sediment in the Jiaojiang Estuary in spring[J]. Marine Geology & Quaternary Geology, 2018, 38(1): 41−51.
[32]	徐海, 武小勇, 张沈阳, 等. 椒江河口悬沙浓度时空变化特征分析[J]. 浙江水利科技, 2017, 45(3): 7−12. Xu Hai, Wu Xiaoyong, Zhang Shenyang, et al. Characteristics of temporal and spatial variation of suspended sediment concentration in Jiaojiang River Estuary[J]. Zhejiang Hydrotechnics, 2017, 45(3): 7−12.
[33]	赵今声, 赵子丹, 员瑛, 等. 海岸河口动力学[M]. 北京: 海洋出版社, 1993. Zhao Jinsheng, Zhao Zidan, Yuan Ying, et al. Coastal and Estuarine Dynamics[M]. Beijing: China Ocean Press, 1993.
