基于光谱特征的HY-1C/D卫星赤潮探测方法

王义衎; 刘荣杰; 刘建强; 丁静; 叶小敏; 赵鑫; 宋冬梅; 马毅

doi:10.12284/hyxb2023179

基于光谱特征的HY-1C/D卫星赤潮探测方法以红夜光藻为例

doi: 10.12284/hyxb2023179

王义衎^{1, 2,},
刘荣杰^{1, 3, ,},
刘建强⁴,
丁静⁴,
叶小敏⁴,
赵鑫^{1, 5},
宋冬梅²,
马毅^{1, 3}

1.
自然资源部第一海洋研究所，山东青岛 266061
2.
中国石油大学（华东）海洋与空间信息学院，山东青岛 266580
3.
自然资源部海洋遥测技术创新中心，山东青岛 266061
4.
国家卫星海洋应用中心，北京 100081
5.
山东科技大学测绘与空间信息学院，山东青岛 266590

基金项目: 国家重点研发计划项目（2022YFC3105101）；国家自然科学基金重大项目（61890964）；中韩海洋科学共同研究中心项目（PI-2022-1）。

详细信息

作者简介:
王义衎（1999—），女，山东省潍坊市人，主要从事赤潮遥感探测研究。E-mail：wangyikan@126.com

通讯作者:
刘荣杰（1981—），男，副研究员，主要从事海洋光学遥感方面研究。E-mail：liurj@fio.org.cn

中图分类号: P714⁺.5
计量
- 文章访问数: 237
- HTML全文浏览量: 177
- PDF下载量: 44
- 被引次数: 0
出版历程
- 收稿日期: 2023-05-12
- 修回日期: 2023-11-25
- 网络出版日期: 2024-01-12
- 刊出日期: 2023-12-01

Detection method of red tide based on the spectral features from HY-1C/D satellite: Take red Noctiluca scintillans blooms as an example

Wang Yikan^{1, 2
,},
Liu Rongjie^{1, 3
, ,},
Liu Jianqiang⁴,
Ding Jing⁴,
Ye Xiaomin⁴,
Zhao Xin^{1, 5},
Song Dongmei²,
Ma Yi^{1, 3}

1.
First Institute of Oceanography, Ministry of Natural Resources, Qingdao 266061, China
2.
College of Oceanography and Space Informatics, China University of Petroleum (East China), Qingdao 266580, China
3.
Technology Innovation Center for Ocean Telemetry, Ministry of Natural Resources, Qingdao 266061, China
4.
National Satellite Ocean Application Service, Beijing 100081, China
5.
College of Geodesy and Geomatics, Shandong University of Science and Technology, Qingdao 266590, China

摘要

摘要: 红夜光藻是我国主要的赤潮优势种，在渤海、黄海、东海和南海均有发生。近年来，红夜光藻赤潮发生频率明显上升，监测需求迫切。但红夜光藻赤潮发生具有分布范围广、变化速度快、多呈条带状分布的特点，其探测对卫星影像空间分辨率、覆盖范围和重访周期要求高。虽然水色卫星在赤潮监测中发挥了重要作用，但其空间分辨率低，无法准确探测条带状分布的红夜光藻赤潮。海洋一号C、D（HY-1C/D）卫星搭载的海岸带成像仪（Coastal Zone Imager，CZI）以其高空间分辨率、大幅宽和短重访周期的优势，被越来越多地用于赤潮监测。现有的红夜光藻赤潮HY-1C/D CZI探测模型大多基于深度学习方法，需要大量赤潮样本，但赤潮样本获取困难，影响模型的精度。因此，本文以2022年3月发生在广东省汕尾市红海湾的红夜光藻赤潮为例，分析了红夜光藻赤潮光谱特征，基于红夜光藻赤潮在红光和近红外波段的高反射特性和浑浊水体在绿光波段的高反射特性，构建了一个面向HY-1C/D CZI的红夜光藻赤潮探测方法。实验结果表明，该方法可以有效地探测赤潮，并避免浑浊水体的干扰，精确率和F1-Score达到89.72%和0.90。而且，该方法具有较好的适用性，可适用于不同海洋环境、不同宽波段卫星传感器的红夜光藻赤潮探测。
- 赤潮 /
- 红夜光藻 /
- 遥感探测 /
- HY-1C/D CZI /
- 光谱特征
Abstract: Red Noctiluca scintillans is the main red tide species in China, which often occurs in the Bohai Sea, Yellow Sea, East China Sea and South China Sea. Recently, the red N. scintillans blooms occurred frequently, leading to an urgent need for their monitoring. However, the occurrence of red N. scintillans blooms is characterized by wide distribution range, rapid change and strip distribution. Therefore, the high spatial resolution, large coverage and short revisit period satellites are needed for red N. scintillans blooms monitoring. Although, ocean color satellites have played an important role in red tide detection, they cannot detect the strip distributed red N. scintillans blooms for their low spatial resolution. The Coastal Zone Imager (CZI) onboard HY-1C/D satellite, with high spatial resolution, wide swath and short revisit cycle, has been increasingly used for red tide monitoring. Most existing red N. scintillans blooms detection methods for HY-1C/D CZI are based on deep learning methods, which need a large number of training samples. However, the training samples are difficult to obtain, which affects the accuracy of the models. Therefore, taking red N. scintillans bloom occurred in the Honghai Bay, Guangdong Province in March 2022 as an example, the spectral features of red N. scintillans blooms were analyzed in this paper, the red tide detection method based on the high reflectance features of red N. scintillans blooms in the red and near infrared bands and turbid water in the green band was constructed for HY-1C/D CZI. The experimental results show that based on the method, red N. scintillans blooms can be detected effectively in the turbid water, with precision and F1-Score of 89.72% and 0.90 respectively. Moreover, the method has good applicability, and it is proved to be suitable for the detection of red N. scintillans blooms in different marine environments. Also, it is applicable to different broad band sensors.
- red tide /
- red Noctiluca scintillans /
- remote sensing detection /
- HY-1C/D CZI /
- spectral features

HTML全文

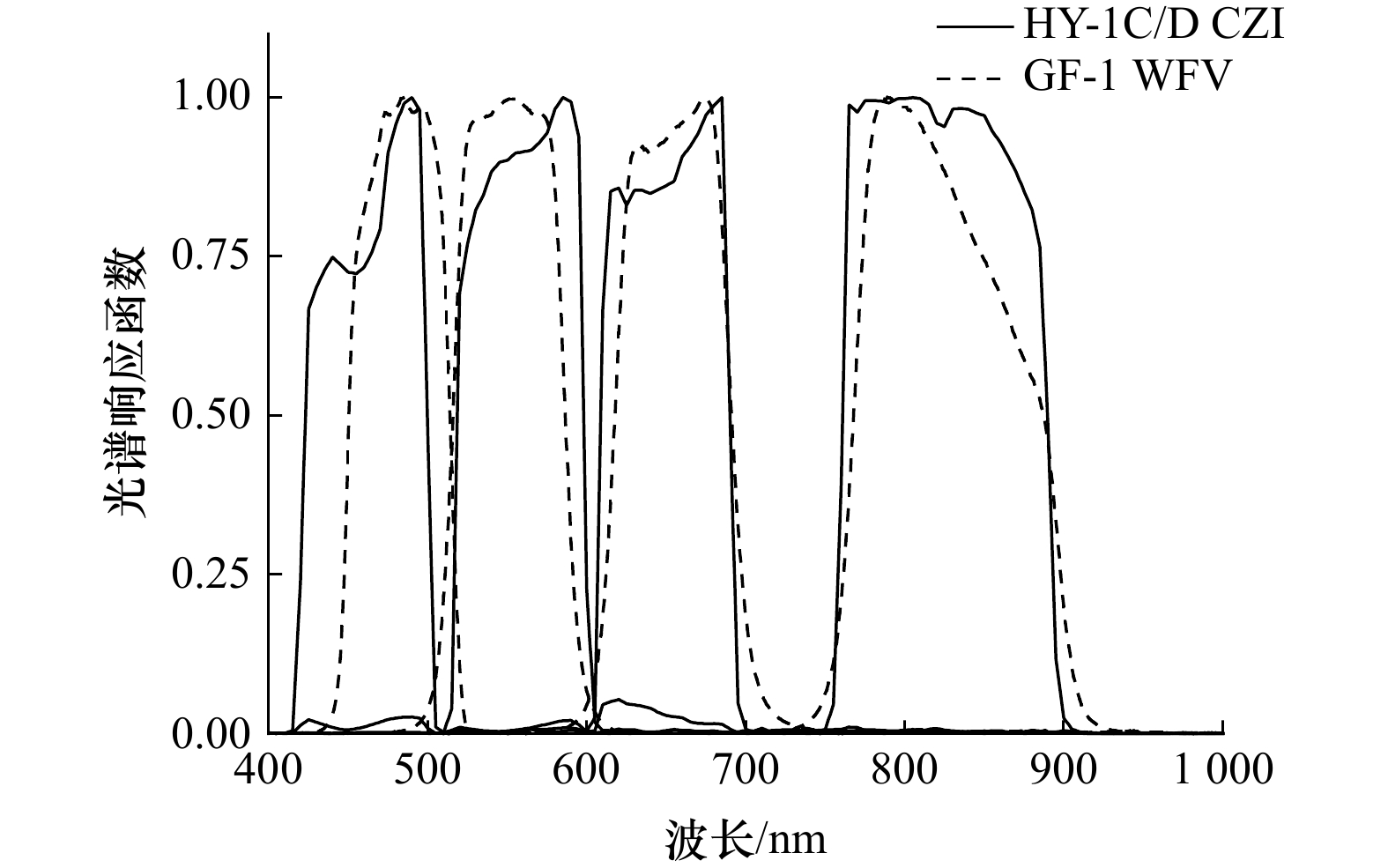

图 1 HY-1C/D CZI、GF-1 WFV光谱响应函数

Fig. 1 Spectral response functions of HY-1C/D CZI and GF-1 WFV

下载: 全尺寸图片幻灯片

图 2 不同卫星传感器数据覆盖范围

Fig. 2 Data coverage of different satellite sensors

下载: 全尺寸图片幻灯片

图 3 不同类型水体样本分布示意图与光谱曲线

Fig. 3 Schematic distribution and spectral curves of different types of water bodies

下载: 全尺寸图片幻灯片

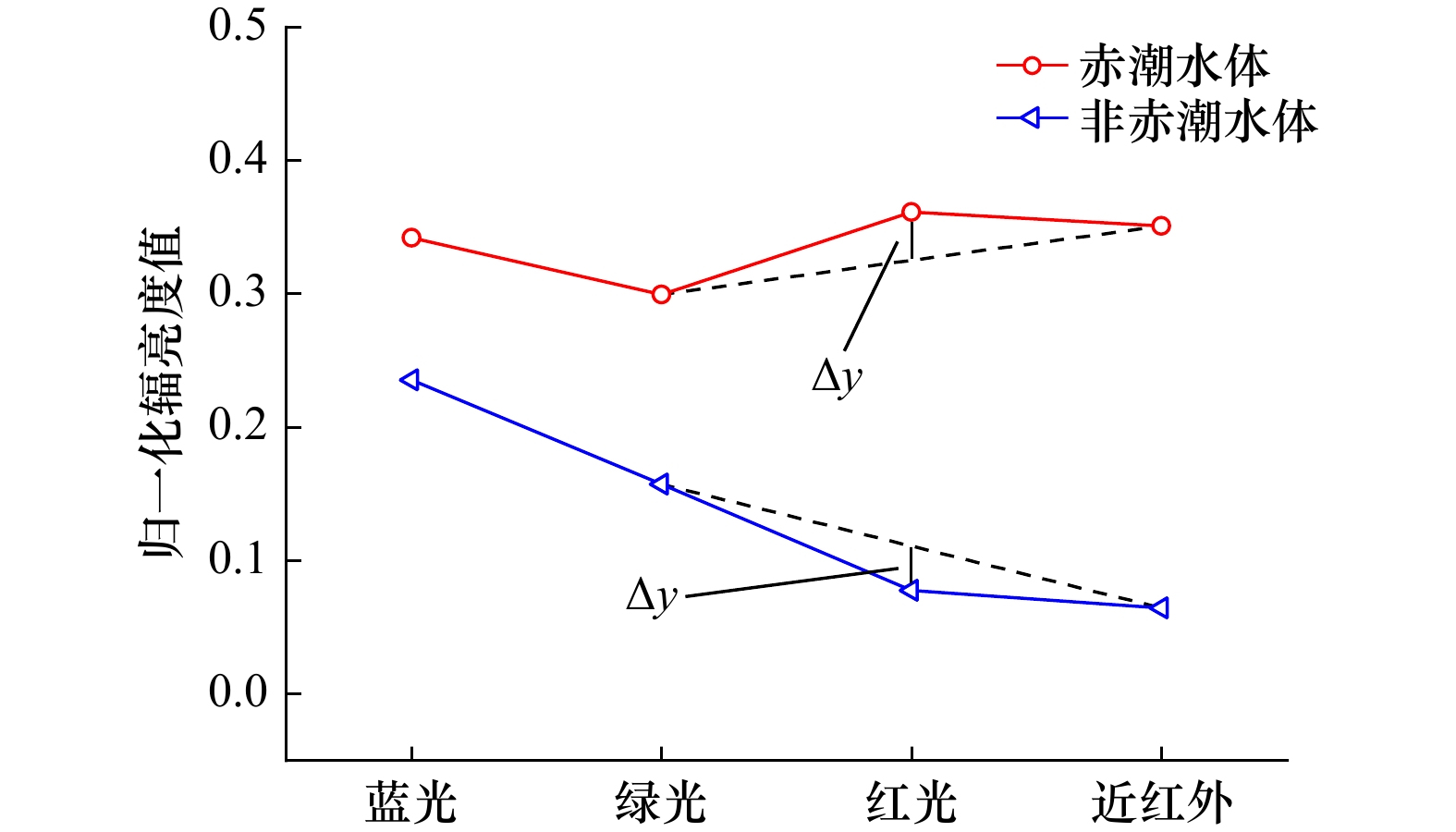

图 4 红光波段基线差示意图

Fig. 4 Schematic of the baseline difference in the red band

下载: 全尺寸图片幻灯片

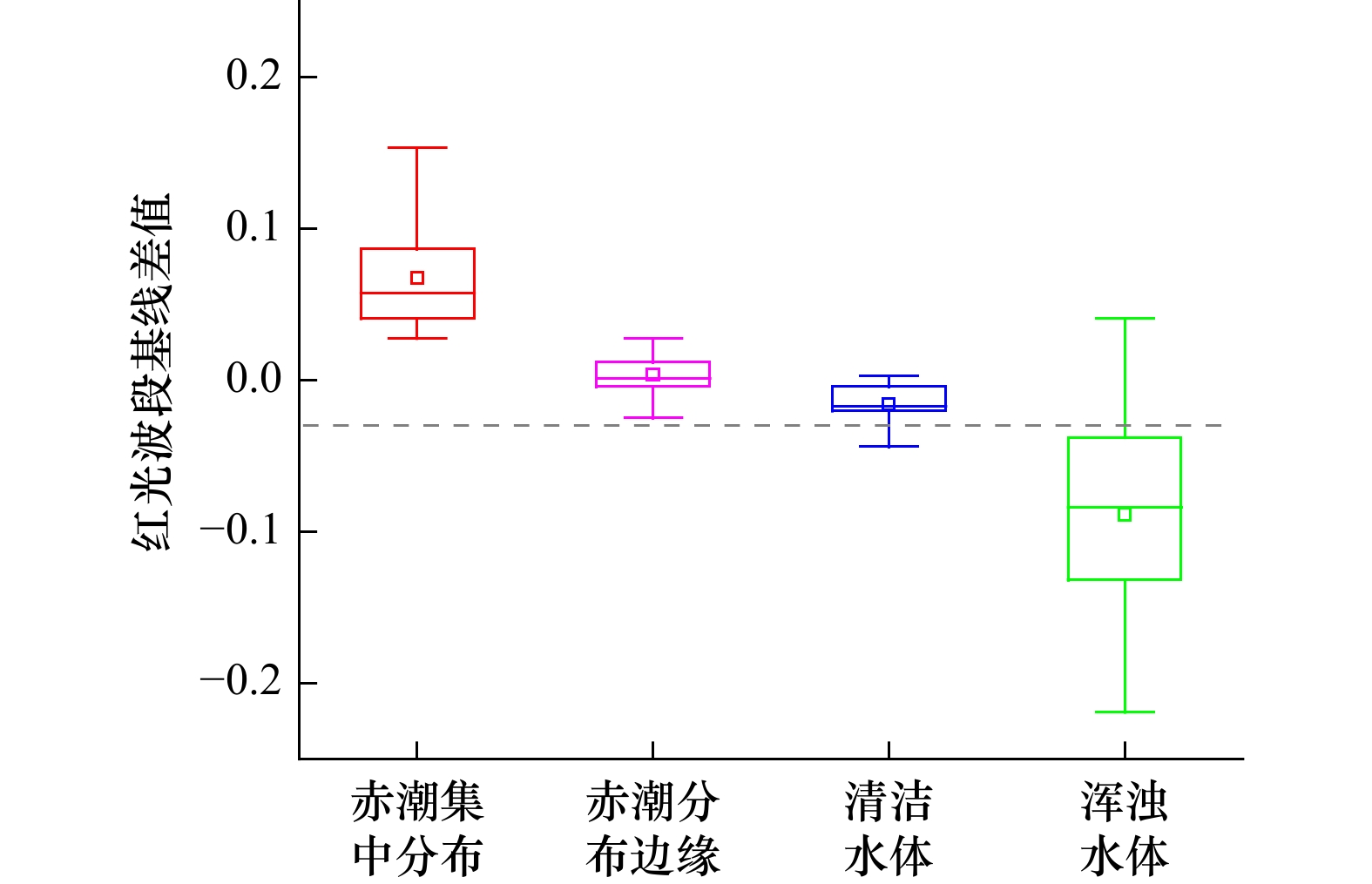

图 5 红光波段基线差值统计结果

Fig. 5 Statistical results of the values of the baseline difference in the red band

下载: 全尺寸图片幻灯片

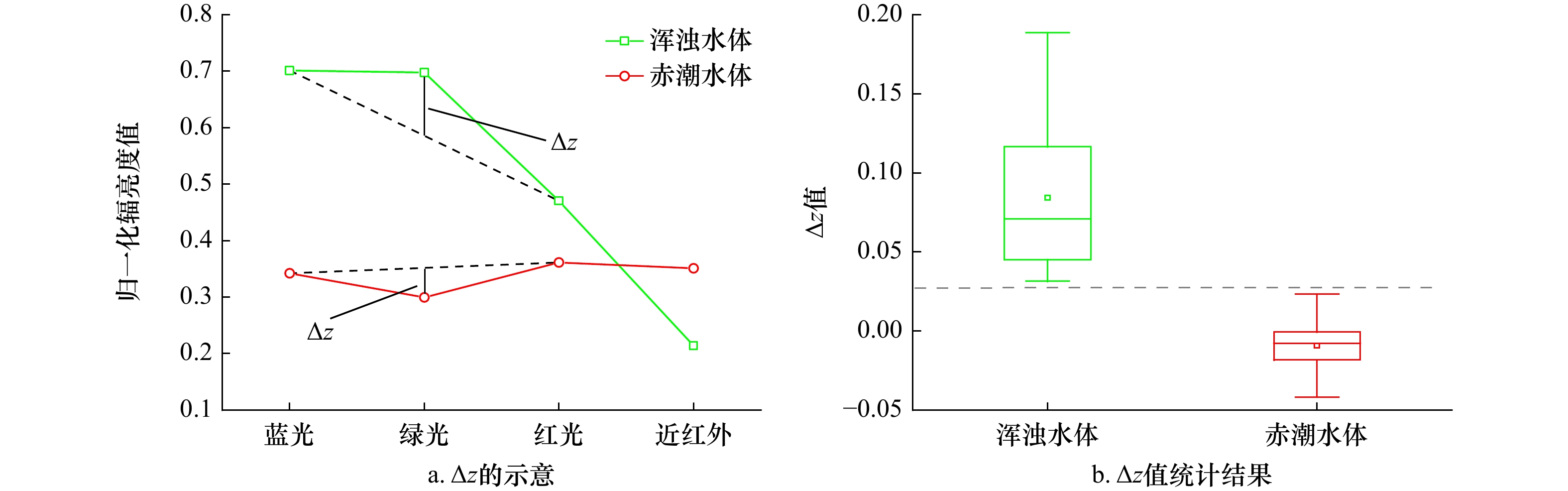

图 6 绿光波段基线差的示意图与统计结果

Fig. 6 Schematic and statistical results of the baseline difference in the green band

下载: 全尺寸图片幻灯片

图 7 不同倍数加和局部赤潮探测结果

Fig. 7 Local red tide detection results of different multiplicative summation

下载: 全尺寸图片幻灯片

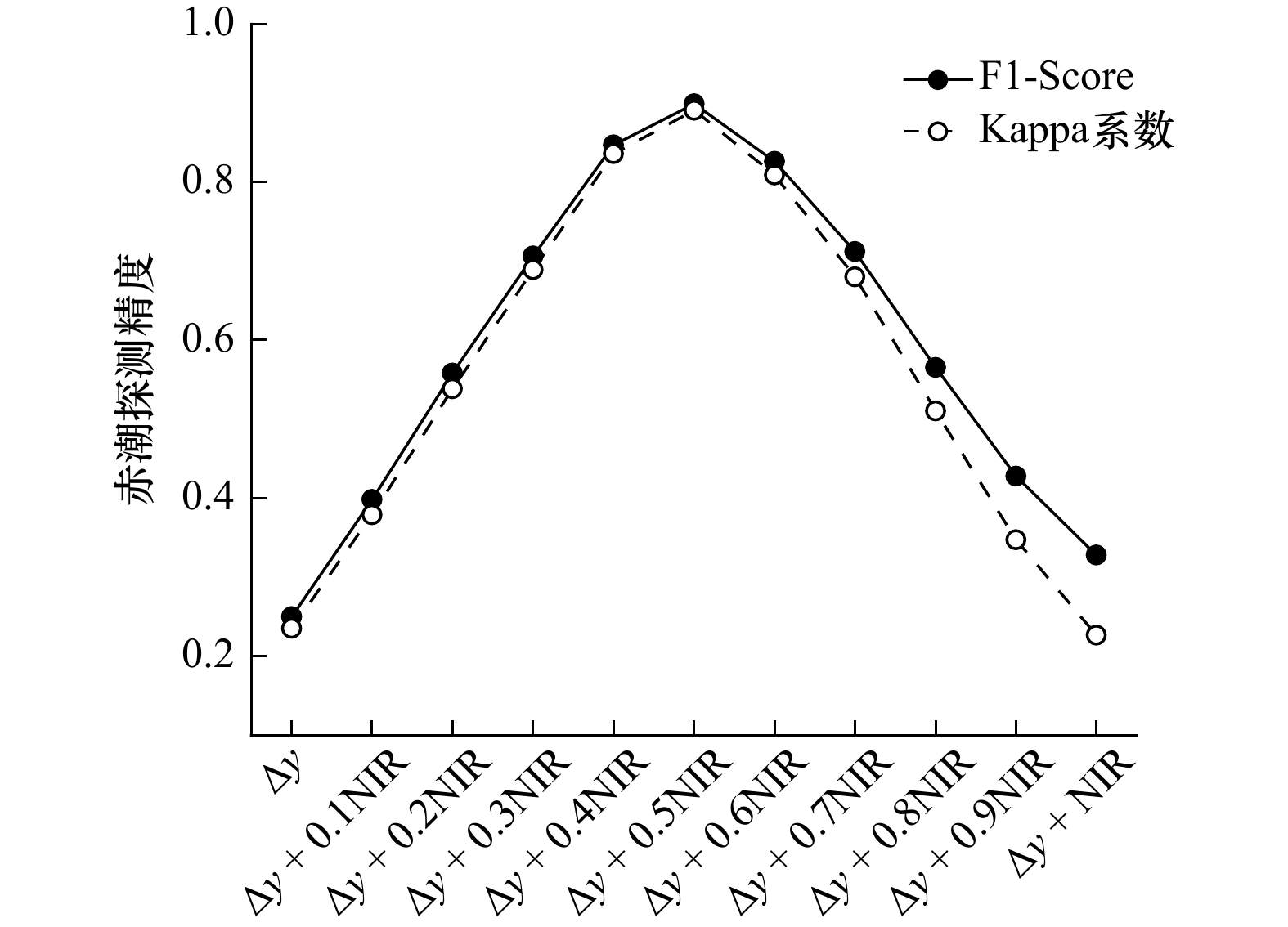

图 8 不同倍数加和赤潮探测精度

Fig. 8 Accuracy of red tide detection by different multiplicative summation

下载: 全尺寸图片幻灯片

图 9 基于光谱特征的赤潮探测方法流程图

Fig. 9 Flowchart of red tide detection method based on spectral features

下载: 全尺寸图片幻灯片

图 10 HY-1C/D CZI影像赤潮探测结果（红色表示赤潮）

Fig. 10 HY-1C/D CZI image red tide detection results (red indicates red tide)

下载: 全尺寸图片幻灯片

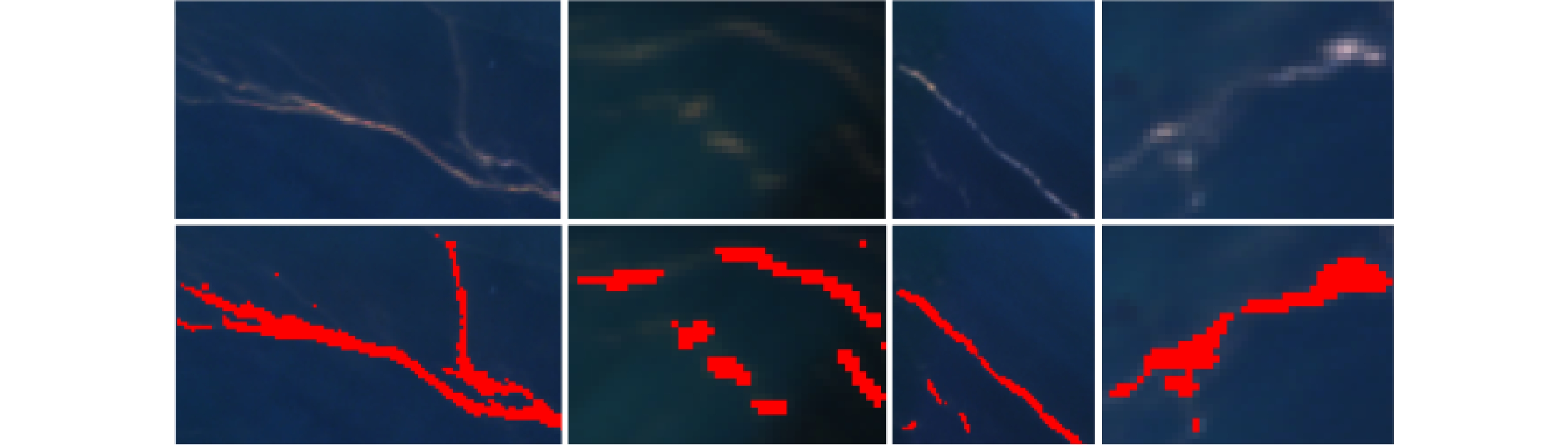

图 11 HY-1C/D CZI影像局部赤潮探测结果（红色表示赤潮）

Fig. 11 Local red tide detection results of HY-1C/D CZI image (red indicates red tide)

下载: 全尺寸图片幻灯片

图 12 浑浊水体区域赤潮探测结果（红色表示赤潮）

Fig. 12 Red tide detection results in turbid water areas (red indicates red tide)

下载: 全尺寸图片幻灯片

图 13 不同赤潮探测方法结果对比（红色表示赤潮）

Fig. 13 Comparison of results of different red tide detection methods (red indicates red tide)

下载: 全尺寸图片幻灯片

图 14 不同赤潮探测方法局部赤潮探测结果（红色表示赤潮）

Fig. 14 Local red tide detection results of different red tide detection methods (red indicates red tide)

下载: 全尺寸图片幻灯片

图 15 不同海洋环境HY-1C CZI影像赤潮探测结果（红色表示赤潮）

Fig. 15 Red tide detection results of HY-1C CZI images in different marine environments (red indicates red tide)

下载: 全尺寸图片幻灯片

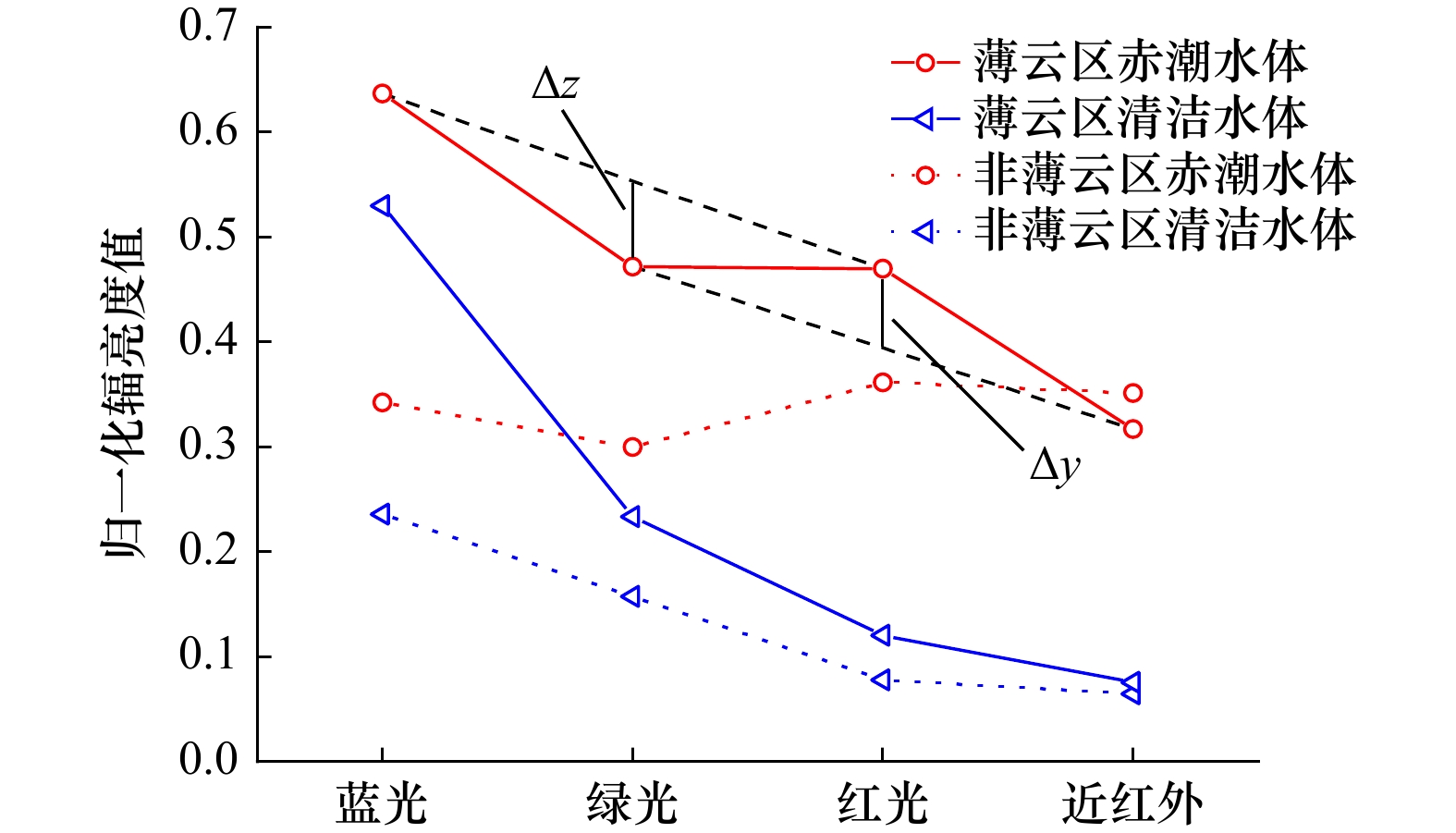

图 16 有无薄云覆盖下不同类型水体光谱曲线

Fig. 16 Spectral curves of different types of water bodies with and without thin cloud cover

下载: 全尺寸图片幻灯片

图 17 GF-1 WFV影像赤潮探测结果（红色表示赤潮）

Fig. 17 GF-1 WFV image red tide detection results (red indicates red tide)

下载: 全尺寸图片幻灯片

图 18 归一化处理前后不同类型水体光谱曲线

Fig. 18 Spectral curves of different types of water bodies before and after normalization

下载: 全尺寸图片幻灯片

表 1 HY-1C/D CZI和GF-1 WFV卫星传感器参数

Tab. 1 HY-1C/D CZI and GF-1 WFV satellite sensor parameters

传感器	波段	光谱范围/ nm	中心波长/ nm	空间分辨率/ m	幅宽/ km	重访周期/ d
HY-1C/D CZI	1	420～500	460	50	950	3
	2	520～600	560	50	950	3
	3	610～690	650	50	950	3
	4	760～890	825	50	950	3
GF-1 WFV	1	450～520	485	16	800	4
	2	520～600	560	16	800	4
	3	630～690	660	16	800	4
	4	760～900	830	16	800	4

下载: 导出CSV

表 2 所用卫星影像详细信息

Tab. 2 Detailed information of satellite images used

传感器	成像时间	纬度	经度	覆盖区域
HY-1D CZI	2022年3月13日	19° 29' 44"～24° 33' 38"N	108° 00' 00"～118° 09' 04"E	广东红海湾
HY-1C CZI	2022年3月14日	19° 39' 52"～24° 44' 10"N	110° 10' 55"～120° 18' 59"E	广东红海湾
	2020年8月17日	31° 38' 33"～34° 44' 11"N	124° 14' 34"～135° 27' 05"E	东海
	2021年2月14日	16° 50' 08"～21° 52' 53"N	105° 48' 27"～115° 37' 30"E	广西北部湾
GF-1 WFV	2022年3月13日	21° 48' 09"～24° 03' 14"N	114° 34' 08"～117° 12' 22"E	广东红海湾

下载: 导出CSV

表 3 不同方法赤潮探测精度

Tab. 3 Accuracy of red tide detection by different methods

方法	总体精度/%	精确率/%	召回率/%	F1-Score	Kappa系数
RTSI	98.42	89.72	90.16	0.90	0.89
GF1_RI	97.02	81.90	79.76	0.81	0.79

下载: 导出CSV
