一种融合纹理特征与NDVI的随机森林海冰精细分类方法

王志勇 张梦悦 于亚冉 泥萍

王志勇,张梦悦,于亚冉,等. 一种融合纹理特征与NDVI的随机森林海冰精细分类方法[J]. 海洋学报,2021,43(10):149–156 doi: 10.12284/hyxb2021167
引用本文: 王志勇,张梦悦,于亚冉,等. 一种融合纹理特征与NDVI的随机森林海冰精细分类方法[J]. 海洋学报,2021,43(10):149–156 doi: 10.12284/hyxb2021167
Wang Zhiyong,Zhang Mengyue,Yu Yaran, et al. A fine classification method for sea ice based on random forest combining texture feature and NDVI[J]. Haiyang Xuebao,2021, 43(10):149–156 doi: 10.12284/hyxb2021167
Citation: Wang Zhiyong,Zhang Mengyue,Yu Yaran, et al. A fine classification method for sea ice based on random forest combining texture feature and NDVI[J]. Haiyang Xuebao,2021, 43(10):149–156 doi: 10.12284/hyxb2021167

一种融合纹理特征与NDVI的随机森林海冰精细分类方法

doi: 10.12284/hyxb2021167
基金项目: 国家自然科学基金(41876202);山东省自然科学基金(ZR2017MD020)
详细信息
    作者简介:

    王志勇(1978-),男,山东省青岛市人,博士,副教授,主要从事雷达干涉测量、海洋遥感等方面的研究。E-mail:wzywlp@163.com

    通讯作者:

    张梦悦(1996-),硕士生,主要从事光学海冰分类方面的研究。E-mail:zhang19961028@126.com

  • 中图分类号: P731.15; P715.7

A fine classification method for sea ice based on random forest combining texture feature and NDVI

  • 摘要: 海冰的精准分类对于掌握海冰生长发育状况,保障航海安全等具有重要意义。由于受数据源和分类方法等影响,使得海冰分类精度提高受限。本文面向高空间分辨率的光学遥感影像,提出了一种融合纹理特征和归一化差分植被指数(NDVI)的海冰精准分类方法,运用随机森林分类器构建海冰分类方法。以青岛胶州湾为实验区,高分二号(GF-2)为实验数据,进行了海冰类型提取,并与其他分类方法进行对比。结果显示:针对GF-2高分辨率光学遥感数据,融合纹理特征和NDVI的随机森林方法,相比于传统的随机森林、支持向量机、自动决策树和融合纹理特征的最大似然分类方法,总体分类精度分别提高13.70%、11.60%、19.22%、29.37%。Kappa系数分别提高0.16、0.13、0.22、0.44。相比于融合纹理特征和归一化水指数(NDWI)的随机森林方法,总体分类精度提高了9.67%,Kappa系数提高了0.09。这表明本文构建的海冰分类方法可有效提高海冰分类精度,为海冰的精确分类提供了一种有效的技术手段。
  • 图  1  流程图

    Fig.  1  Flow chart

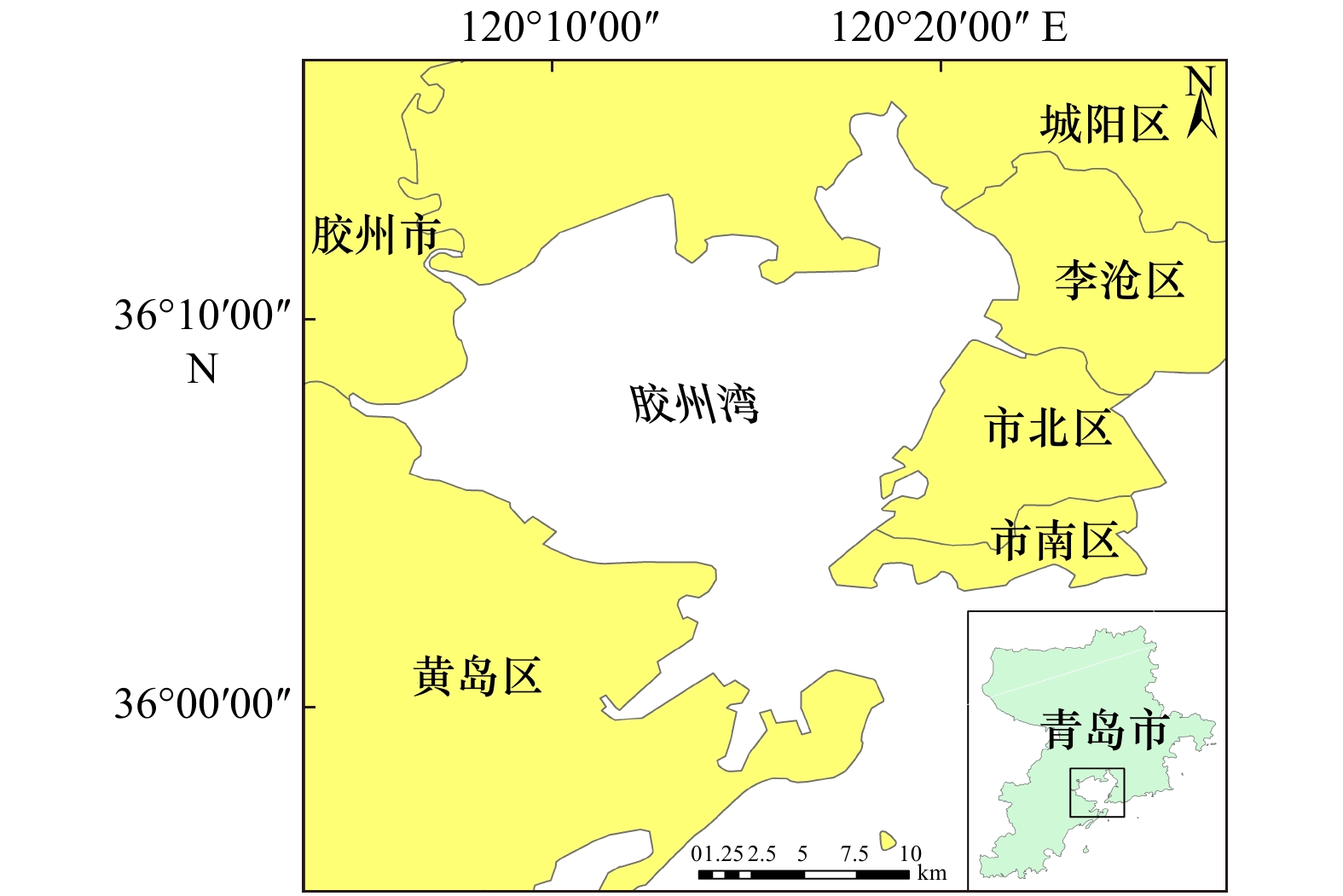

    图  2  研究区域位置
