Analysis of the spatiotemporal characteristics of stratification in the Indonesian seas and surrounding waters
-
摘要: 本文利用World Ocean Atlas 2013 (WOA13)和Simple Ocean Data Assimilation version 3.1.1 (SODA v3.3.1)温盐资料,分析印尼贯穿流(ITF)路径及所经印度尼西亚海及周边西太平洋、南海和东印度洋海域的层结强度(N2)和跃层特征的三维时空变化特征。结果表明,气候态下ITF 3条路径上跃层平均N2差异较小,其中中部路径平均值最大,为10−3.68 s−2,东部路径平均值最小,为10−3.71 s−2;各路径跃层深度和厚度存在明显差异,东部路径跃层深度和厚度最大,分别为124 m和192 m,中部次之,西部最小为99 m和143 m,并且印尼海的跃层深度和厚度平均值均小于其他海域。印尼海N2存在显著的季节变化和4~7 a的多年周期变化,其中年际变化可能主要受厄尔尼诺−南方涛动事件影响。季节上,在印尼海域内,ITF 3条路径夏季层结强度均小于冬季(北半球夏冬季),夏、冬两季N2差值最大可达到两个量级。1993−2015年的长期变化趋势显示,印尼海及周边大部分海域的层结强度呈现增强趋势,其中印度洋中部和哈马黑拉海23 a内最大层结增强近0.1个量级。Abstract: Using climatological and monthly temperature and salinity data from the World Ocean Atlas 2013 (WOA13) and the Simple Ocean Data Assimilation Version 3.3.1 (SODA v3.3.1), this study analyzes the 3D spatiotemporal characteristics of stratification (N2) and pycnocline along the pathways of Indonesia Throughflow (ITF) in the Indonesian seas and surrounding waters in the western Pacific, the South China Sea and the eastern Indian Ocean. The results show that the climatologically mean N2 in pycnocline has little difference in all the pathways of the ITF, and the largest value is 10−3.68 s−2 in the central pathway and the smallest is 10−3.71 s−2 in the eastern pathway. The differences are significant for the depth (Dpyc) and thickness (Hpyc) of the pycnocline along three pathways. The largest values of Dpyc and Hpyc are 124 m and 192 m in the eastern pathway, respectively, followed by values of 99 m and 143 m in the central pathway. Compared to the surrounding oceans, the mean pycnocline depth and thickness of the three pathways in the Indonesian seas are smaller than those in other seas. N2 and Dpyc have remarkably seasonal variation with period of one year and inter-annual variability with periods of 4−7 year cycles. The interannual variability may be mainly affected by the ENSO event. Seasonally, the summer N2 in the Indonesia seas is less than that in winter (northern hemisphere winter and summer), and the maximum difference between winter and summer can reach two orders of magnitude. The long-term variation trend of N2 from 1993 to 2015 shows that the stratification intensifies in most areas of Indonesian seas and surrounding waters, where N2 strengthened by nearly 0.1 order of magnitude in 23 years in the middle of the India Ocean and Halmahera Sea.
-
Key words:
- Indonesian seas /
- buoyancy frequency /
- pycnocline /
- Indonesia Throughflow /
- ENSO events
-
图 2 印尼海及周边海域气候态流场分布
a. 25 m深度流场;b. 150 m深度流场;黄、红、粉曲线分别为TIF西部路径、中部路径和东部路径
Fig. 2 2D distribution (x−y) of climatological velocities in the Indonesian seas and surrounding waters
a. Velocities at 25 m depth; b. velocities at 150 m depth; yellow, red, and pink lines represent the western, central, and eastern pathways of the ITF, respectively

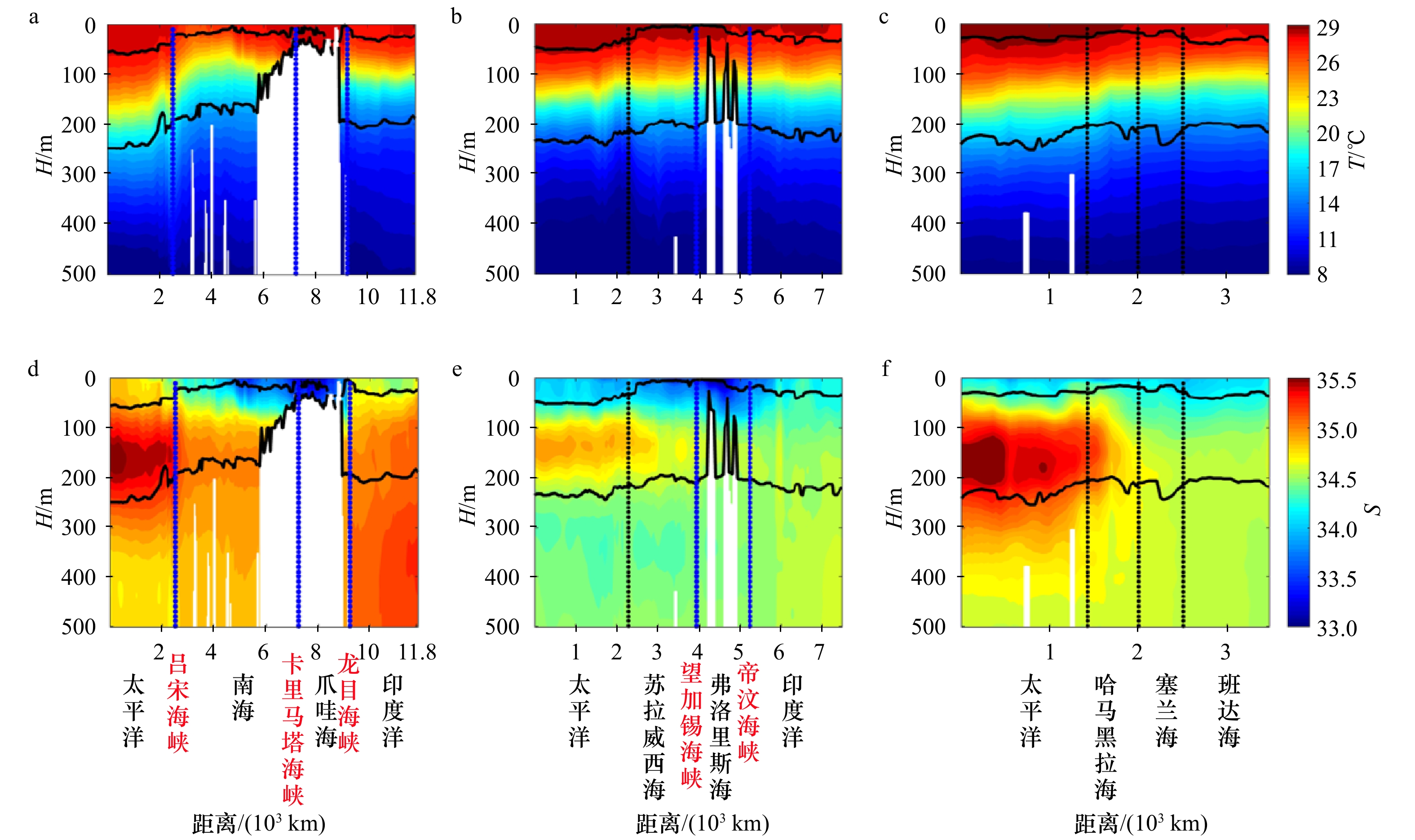

图 3 ITF路径上气候态温度(a−c)和盐度(d−f)断面分布
a, d. 西部路径;b, e. 中部路径;c, f. 东部路径。蓝色虚线为海峡位置,黑色实线为跃层上下边界深度
Fig. 3 Distribution of climatological temperature(a−c)and salinity (d−f) along ITF pathways
a, d. The western pathway; b, e. the central pathway; c, f. the eastern pathway. Blue dashed lines represent the key straits, black solid lines represent the upper and the lower boundaries of the pycnocline
图 4 ITF路径上气候态浮力频率(N2)断面分布(N2的单位:s−2)
a. 西部路径;b. 中部路径;c. 东部路径。蓝色虚线为海峡位置,黑色实线为跃层上下边界深度
Fig. 4 Distribution of climatological squared buoyancy frequency (N2) along ITF pathways (unit of N2 is s−2)
a. The western pathway; b. the central pathway; c. the eastern pathway. Blue dashed lines represent the key straits, black solid lines represent the upper and the lower boundaries of the pycnocline

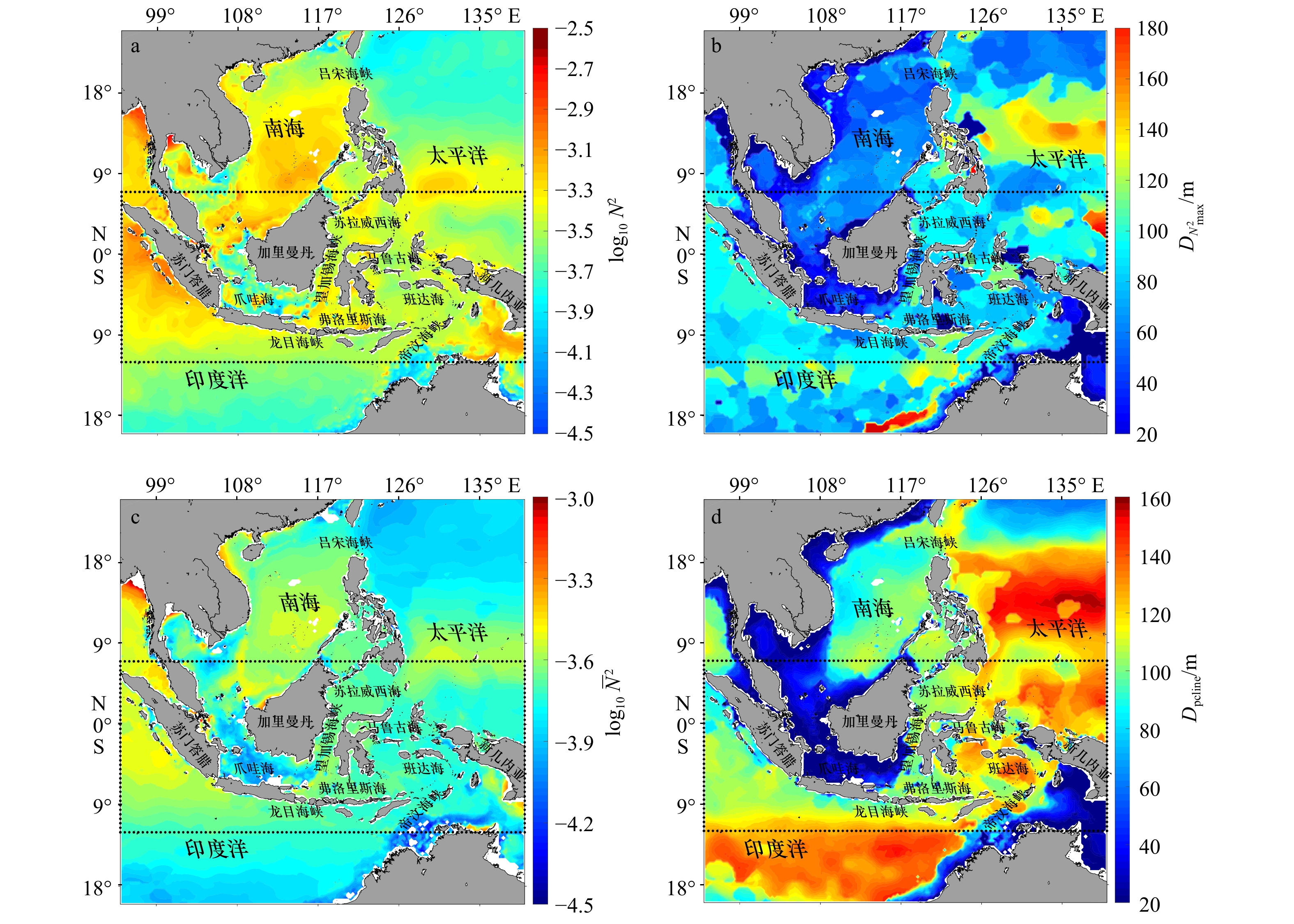

图 5 印尼海及周围海域气候态层结特征平面分布
a. 最大浮力频率N2max;b. 最大浮力频率所在深度${D_{N_{{\rm{max}}}^2}}$;c. 跃层内平均浮力频率${\overline{{N}^{2}}}$;d. 密度跃层平均深度Dpcline
Fig. 5 2D distribution (x-y) of climatological stratification characteristics in the Indonesian seas and surrounding waters
a. The maximum squared buoyancy frequency ${N_{{{\rm{max}}}}^2}$; b. the depth of the maximum squared buoyancy frequency ${D_{N_{{\rm{max}}}^2}}$; c. the mean squared buoyancy frequency in pycnocline ${\overline{{N}^{2}}}$; d. the average depth of pycnocline Dpcline
图 6 ITF路径上夏、冬季浮力频率(N2)断面
a、b、c分别示出TIF西部路径夏、冬季浮力频率以及夏冬浮力频率之差(ΔN2);d、e、f为中部路径;g、h、i为东部路径
Fig. 6 Distribution of summer and winter squared buoyancy frequencies (N2) along ITF pathways
a, b, and c are the squared buoyancy frequency in summer, winter and the summer-winter difference (ΔN2) along the western ITF pathway, respectively; d, e, and f are that of the central pathway; g, h, and i are that along eastern pathway
图 7 印尼海及周围海域夏冬季最大浮力频率(N2max)和最大层结深度
$D_{N_{{\rm{max}}}^2}$ 的平面分布a、b、c分别示出夏、冬季最大浮力频率(N2max)以及夏冬之差(ΔN2max);d、e、f分别示出夏、冬季最大层结深度($D_{N_{{\rm{max}}}^2} $)以及夏冬之差(Δ$D_{N_{{\rm{max}}}^2}$)
Fig. 7 2D distribution (x-y) of maximum squared buoyancy frequency (N2max) and maximum stratigraphic depth (
$D_{N_{{\rm{max}}}^2}$ ) in summer and winter in the Indonesia seas and surrounding watersa, b, and c are the squared maximum buoyancy frequency (N2max) in summer, winter and the summer-winter difference (ΔN2max), respectively; d, e, and f are the depth of the maximum squared buoyancy frequency ($D_{N_{{\rm{max}}}^2} $) in summer, winter and the summer-winter difference (Δ$D_{N_{{\rm{max}}}^2} $),respectively

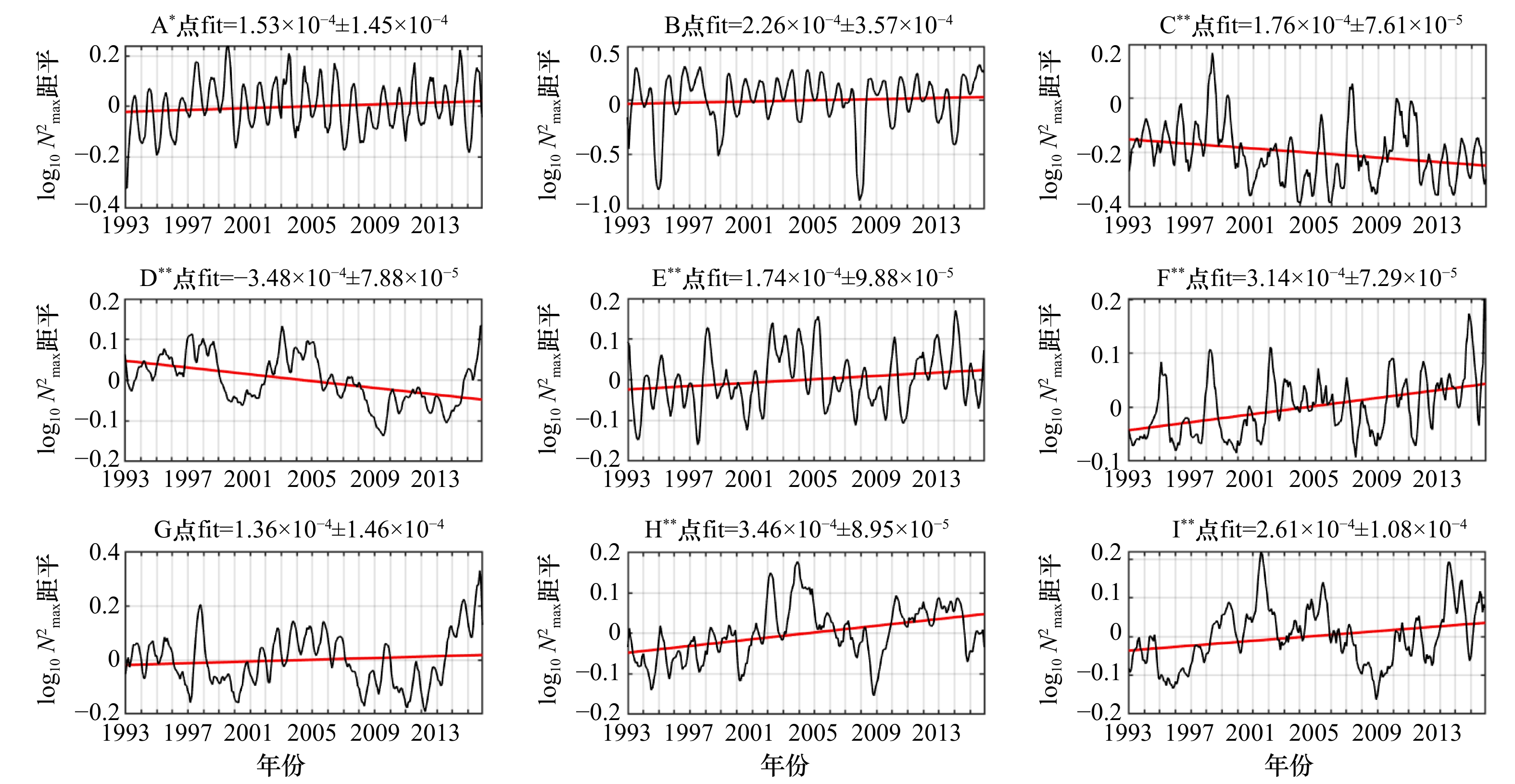

图 9 图1中A−I点1993−2015年N2max变化趋势
黑线为N2max距平值,红线为多年变化趋势;*表示通过95%置信度检验,**表示通过99%置信度检验
Fig. 9 Variation of the maximum squared buoyancy frequency (N2max) at points A−I marked in Fig. 1 from 1993 to 2015
Black lines represent the N2max anomaly, red lines represent multi-year trends; the * mark indicating passing the 95% confidence test, and ** passing the 99% confidence test
表 1 ITF路径平均跃层强度、深度和厚度
Tab. 1 Mean
$ {{N}}^{2} $ , depth and thickness of pycnocline along ITF pathways跃层平均强度log10N2 跃层深度Hpyc/m 跃层厚度Dpyc/m 西部 中部 东部 西部 中部 东部 西部 中部 东部 太平洋 −3.78 −3.68 −3.72 142 139 131 180 185 202 南海 −3.64 − − 79 − − 126 − − 印尼海区 −3.86 −3.66 −3.71 45 100 118 57 179 185 印度洋 −3.64 −3.70 − 112 123 − 127 191 − 平均±偏差 −3.70±0.13 −3.68±0.04 −3.71±0.02 99±55 120±27 124±9 143±38 185±22 192±18 注:−表示无数据。 -
